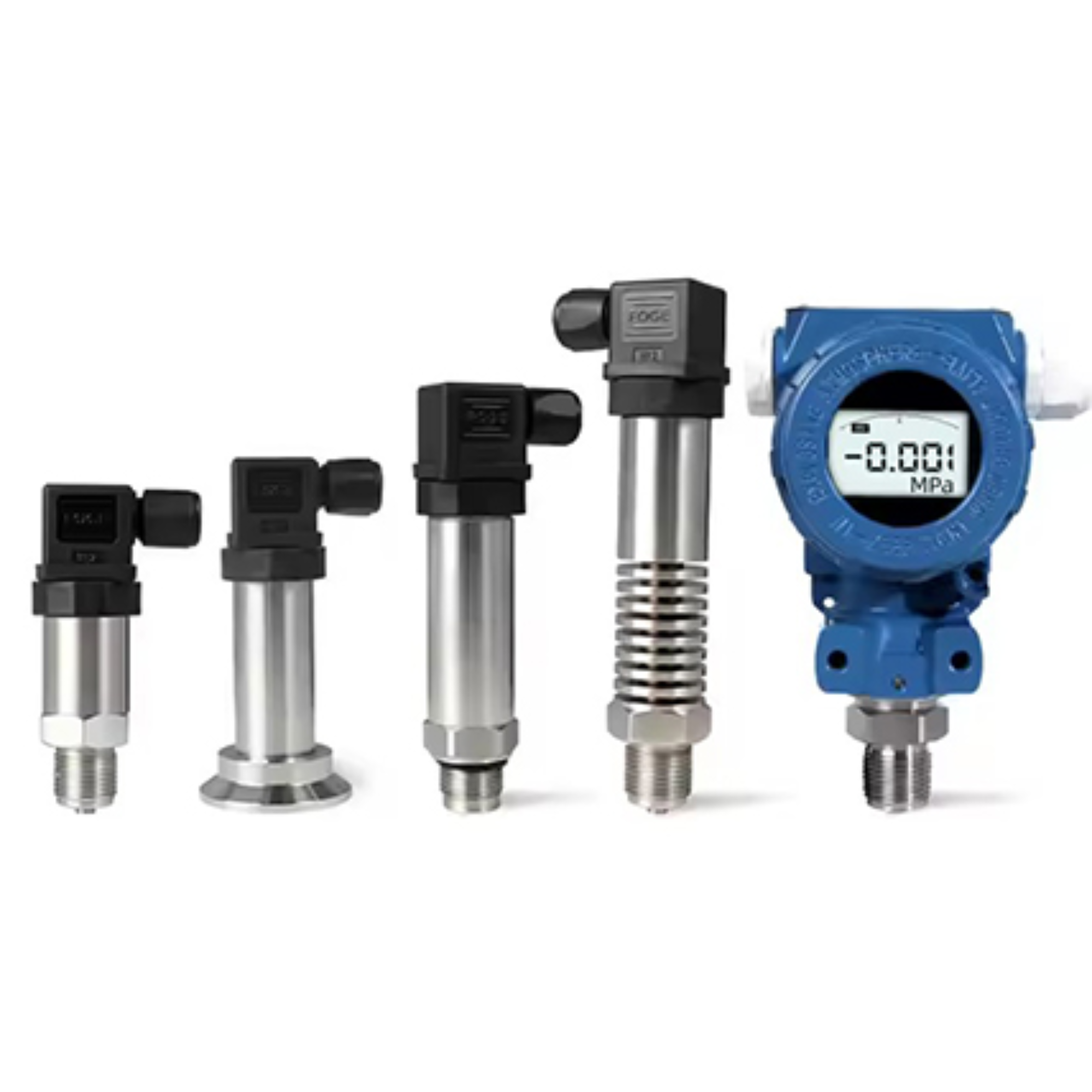

Our pressure transmitter is widely used in the process control field of industries such as petroleum, chemical, metallurgy, power, food, papermaking, medicine, machinery manufacturing, and scientific experiments. Our company has a wide range of product types, including pressure, differential pressure, hydraulic, temperature and other process monitoring instruments, which can meet the needs of customers in different scenarios.
1.Adopting imported silicon piezoresistive sensors.
2.Two wire current and three wire voltage output
3.A variety of electrical connections are optional
4.Good Resistance To Vibration And lmpact
5.Small size and easy to install
SPECIFICATIONS
Pressure type:
Gauge pressure, absolute pressure
Accuracy:
±0.5%FS;±0.25%FS;±0.2%FS;±0.1%FS
Range:
-100kPa...0~ 500Pa...60MPa
Long term stability:
≤0.2%FS/year
Temperature drift:
≤0.02% FS/℃(with in the range of 0-70℃)
Error accuracy:
± 0.2% of the measuring range
Start time:
2 seconds without heating required
Sensor core:
316L
Isolation membrane:
316L(customizable with other materials)
Protection level:
IP65
Pressureoverload:
Twice the upper range limit
Working temperature range:
-20℃~85℃
Storage temperature range:
0-100% relative humidity
