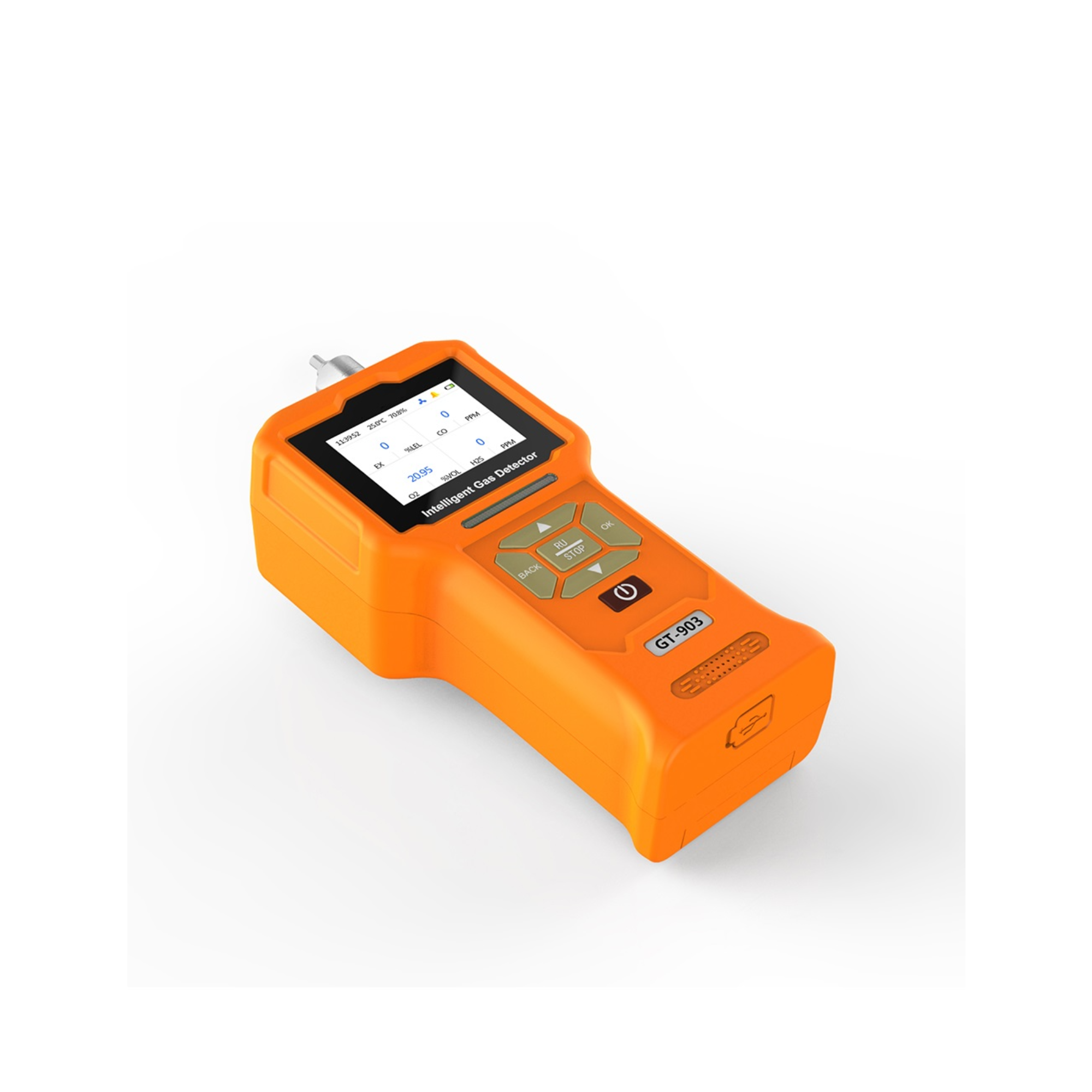

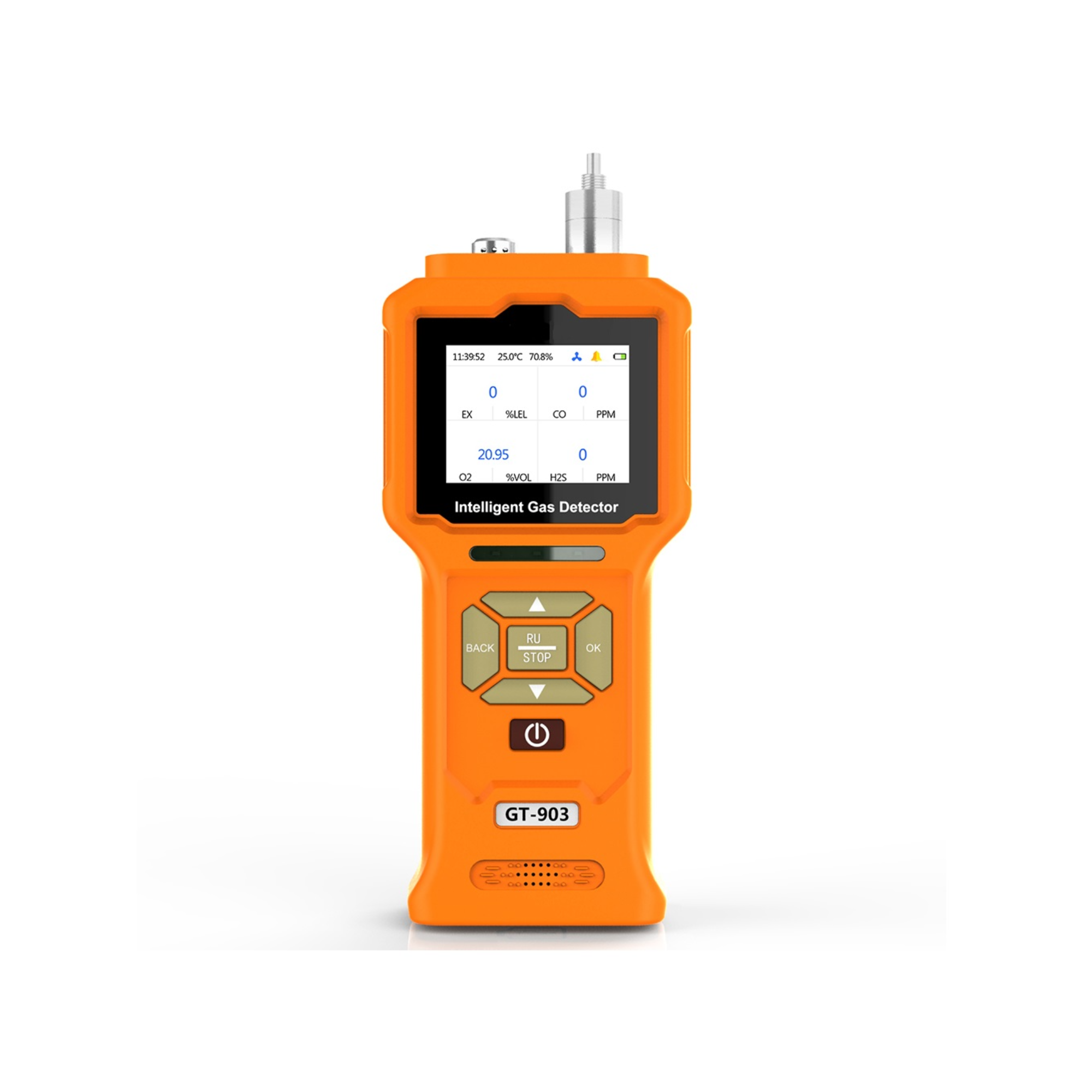

This portable 4 in 1 gas detector is for EX,CO,H2S&O2,gas concentration and historical data can be displayed in the 2.4 inches LCD HD color screen,user can also save the concentration data and output historical data to the PC.Temperature and humidity detection function is also available if needed.
imported sensor provide more accurate measuring
• pump can be turned off during the detection interval
• standard Android interface,compatible with Android phone data lines
• custom setting detection mode and storage mode as needed are available
• IP66 rating,suitable for all kinds of harsh applications
• three concentration units are available：PPM,%VOL,mg/m3

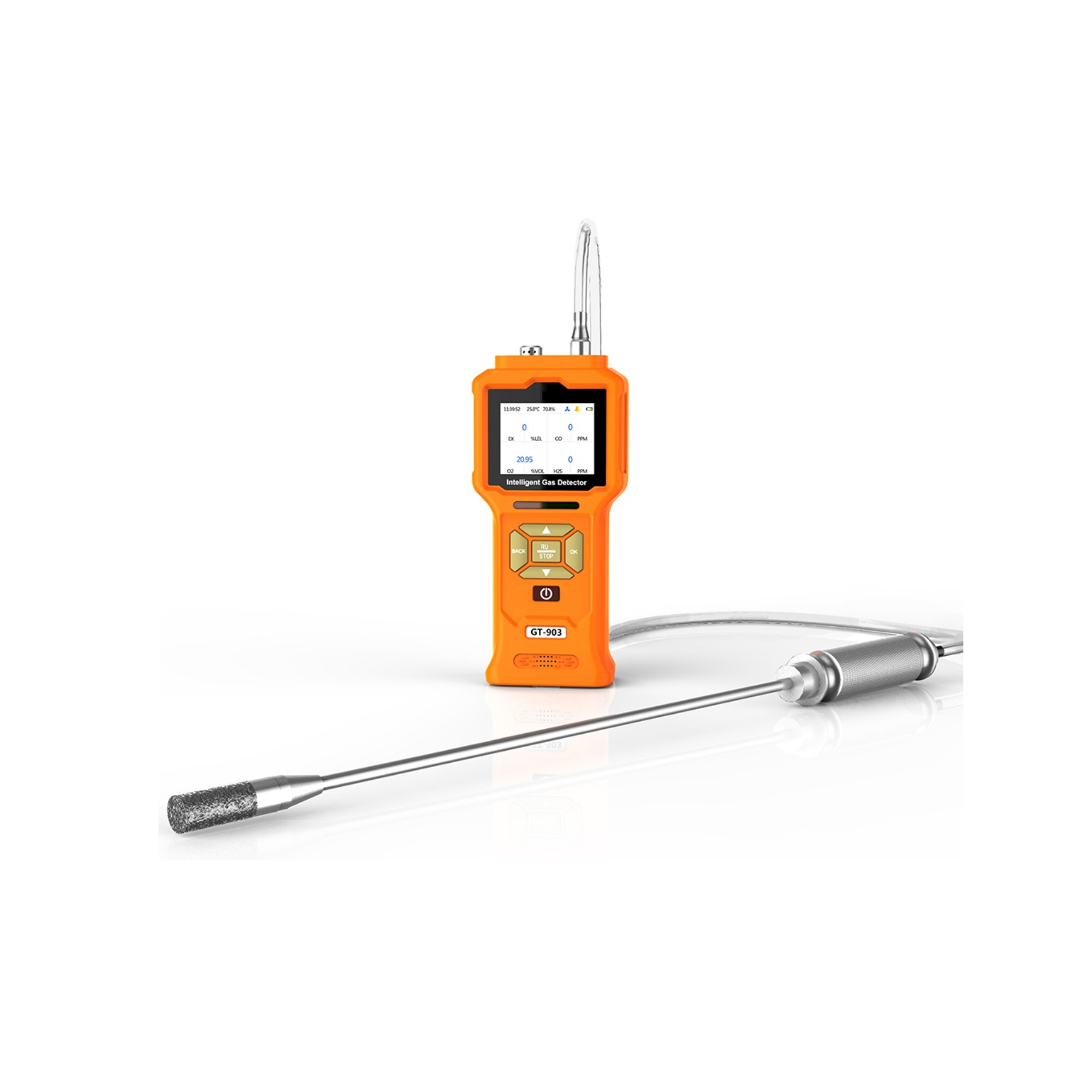

• a variety of accessories:hose,probe,sampling handle,dust filter
Accurate◇Fast◇Stable
pumping design makes gas detection faster and safer
6 levels of target calibration points ensures the linearity
User Friendly Design
Wide Range of Uses
Product Type：
Combustible gas (EX), oxygen (O2), carbon monoxide (CO), hydrogen sulfide (H2S)
Detection Range:
（EX）0-100%LEL、（O2）0-30%VOL、（CO）0-1000PPM、（H2S）0-100PPM
Resolution:
（EX）0.1%LEL、（O2）0.01%VOL、（CO）0.1PPM、（H2S）0.01PPM
Response time：
≤20s（T90）
Detection Accuracy：
≤±3%
Recovery Time：
≤20s（T90）
Repeatability：
≤±1%
IP Rating：
IP66
Explosion Proof Sign：
CNEx16.0538
Temperature and humidity(Optional)：
Temperature detection range:-40 ～ 120℃
Humidity detection range:0-100%RH
Detection Method：
Pumping, built-in miniature air pump
Detection pattern：
Real-time detection mode, timing detection mode and cycle detection mode can be switch freely
Storage Method：
Automatically saving or manually saving (optional),up to 123,200 groups of data can be stored
Operating Environment：
Operating Temperature: -30 ～ 60℃
Operating Humidity: ≤90%RH，Non-condensing
Operating Pressure: -30Kpa ～ 100Kpa
Power : 4000mA high capacity polymer rechargeable battery
Dimensions / Weight:
210*80*70 mm（L×W×H）0.35 Kg（net weight）
Standard Accessories：
Instrument box, manual, certificate, USB charger, calibration cover
