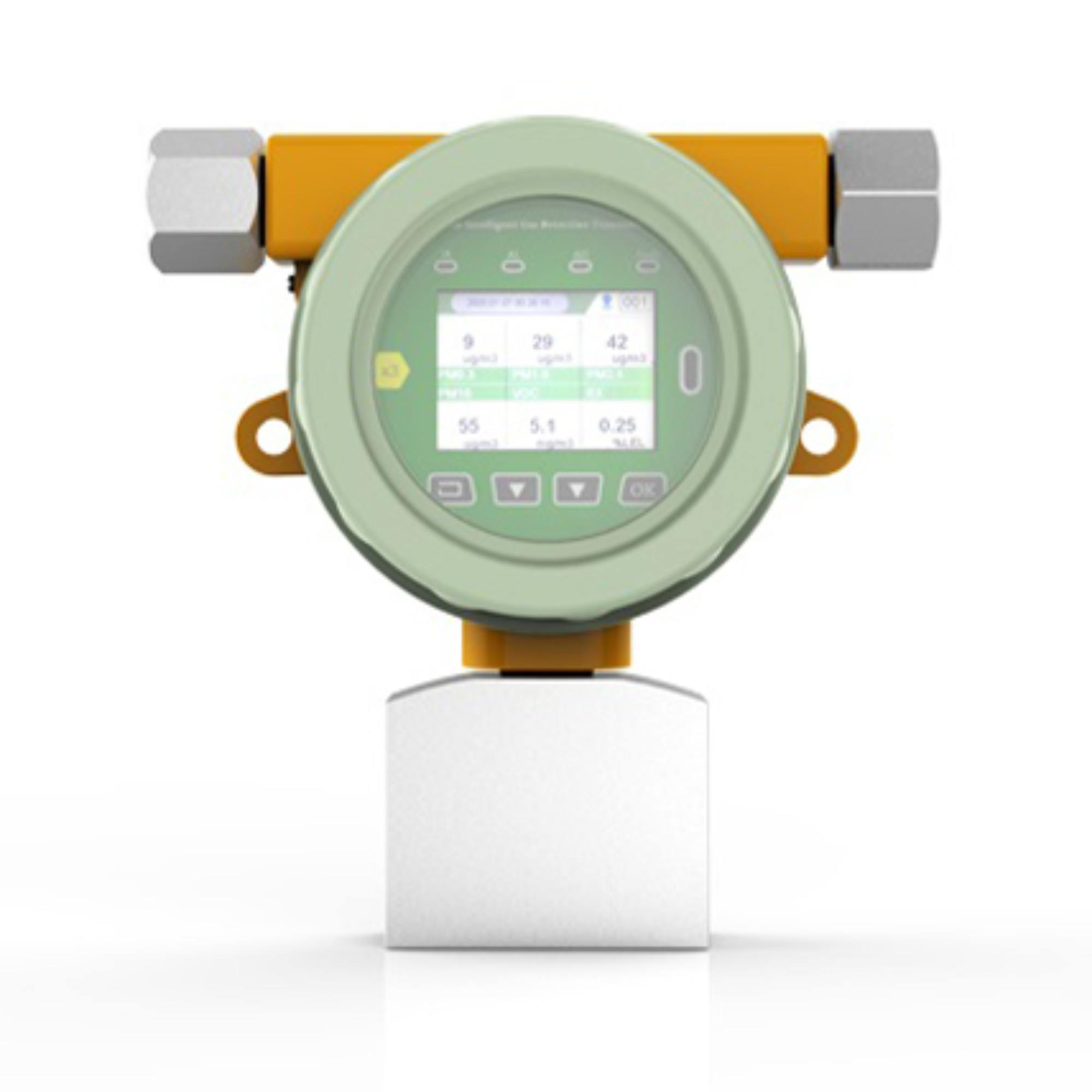

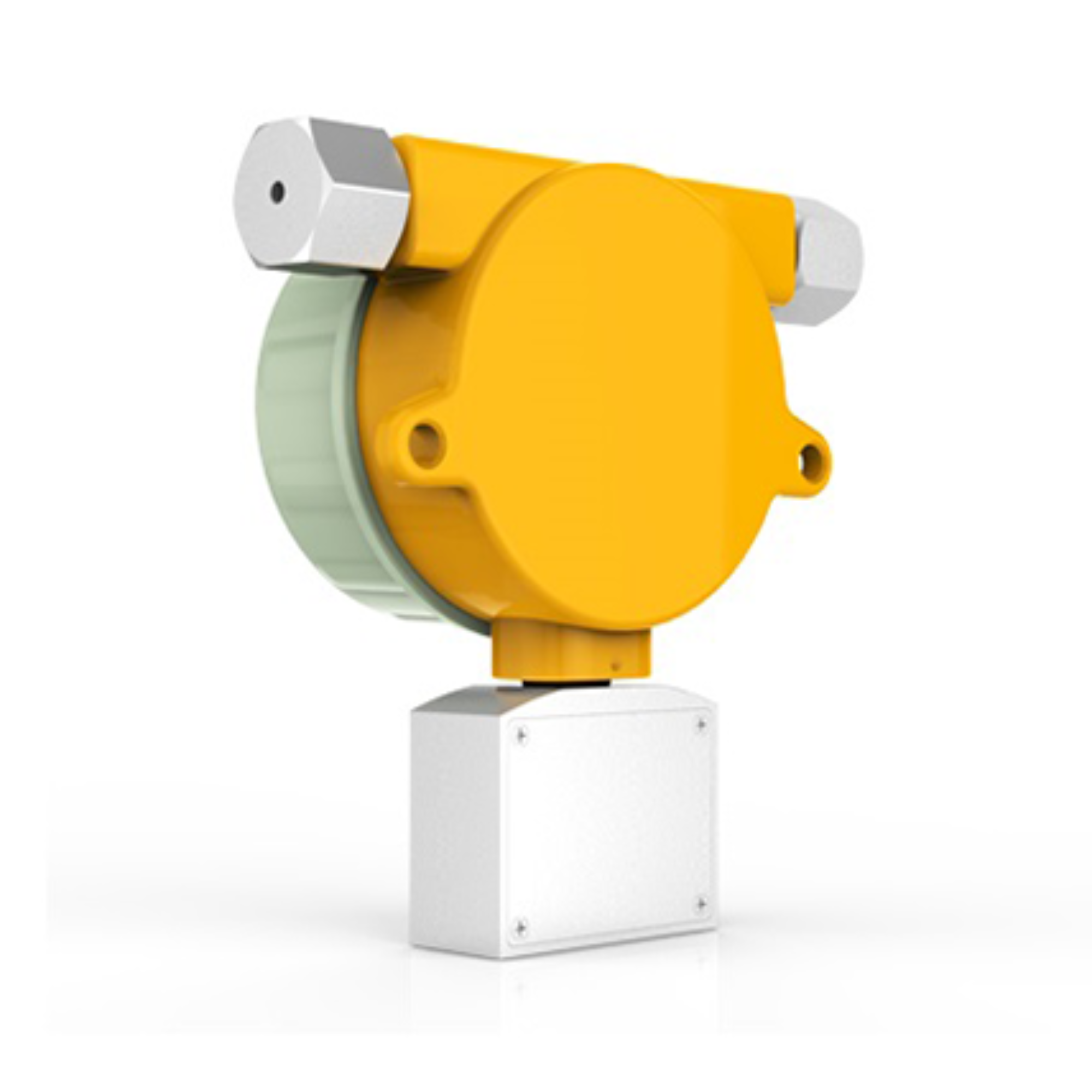

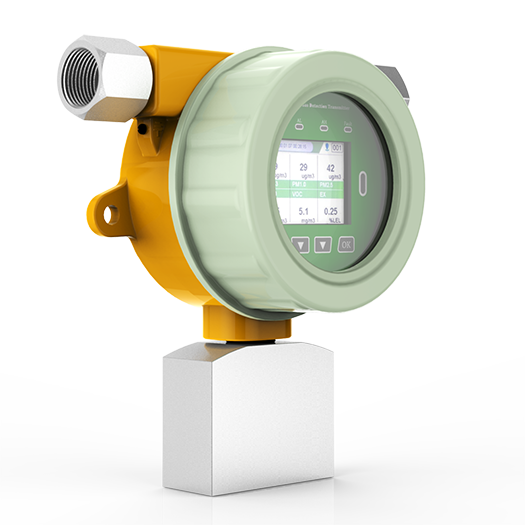

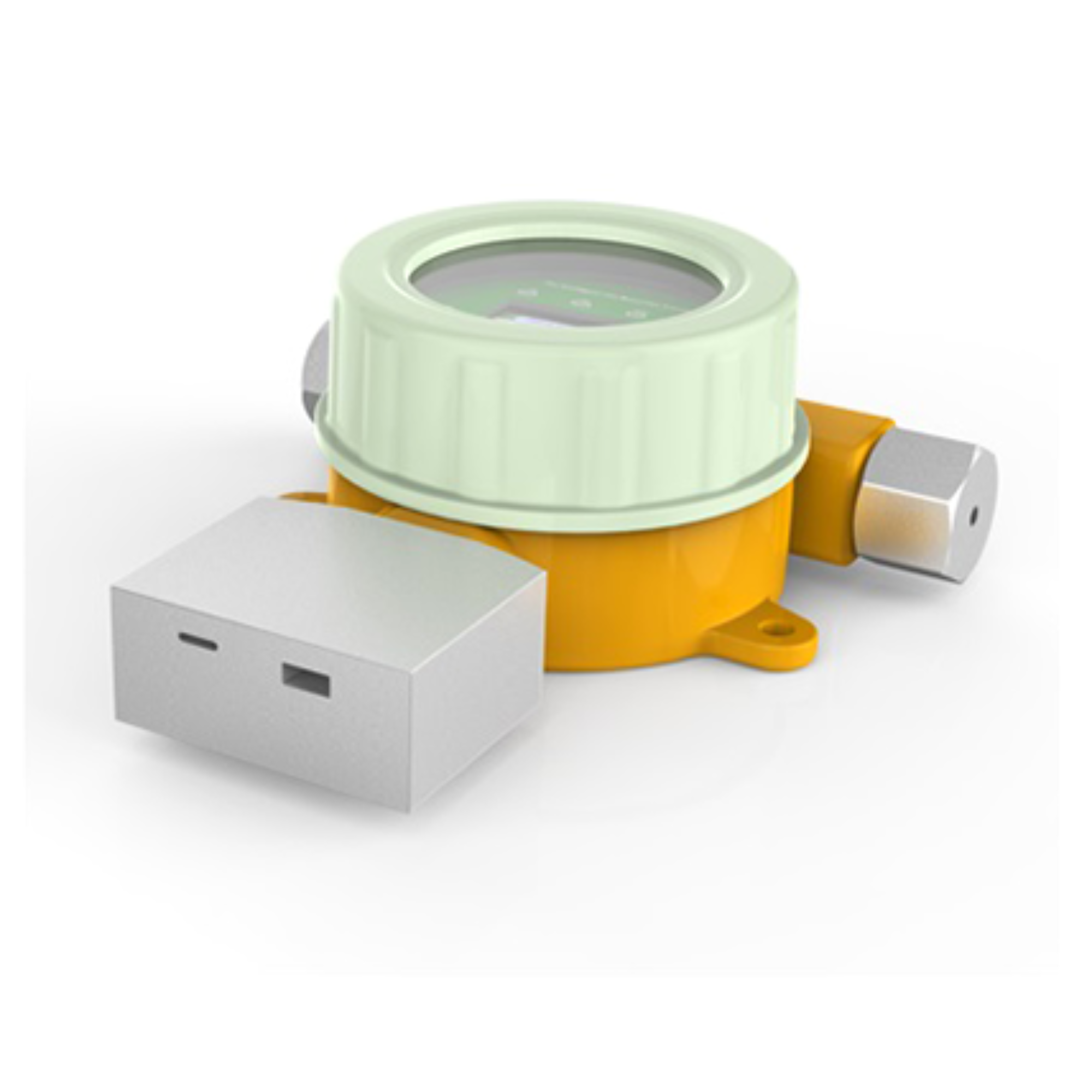

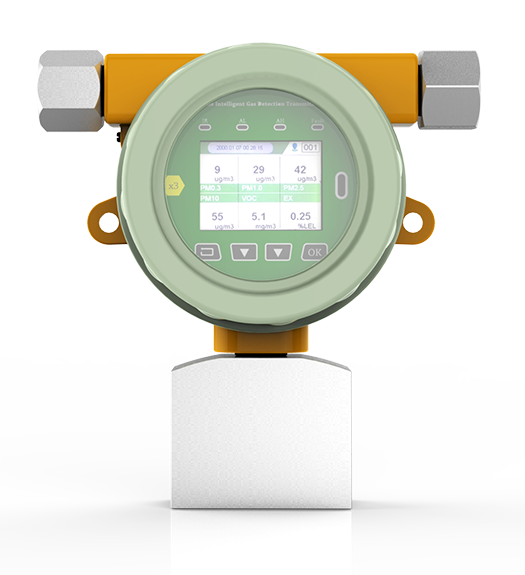

Fixed online dust particle counter is fixedly installed on the dust-free workshops, clean rooms, public environments, etc. to continuously detect the concentration of particles.
adopts high-end imported sensors from different countries
real-time detection and one-click query of the concentration curve
up to 4 particle channels, PM0.5, PM1.0, PM2.5, PM10
• RS485 standard, 4-20mA signal converter optional
1-2 relays output
fiber network, network cable, wireless transmission
controller, PLC, DCS, mobile phone,etc.
• optional gas pretreatment system for complex environment
• variety installation type: wall mounting
• infrared remote control is optional to operate in dangerous situations without opening the lid
High Performance
Variety Signal Output :
• multiple transmission options: 3-4 core cable, optical
• multiple data receiving modes: PC, gas alarm
Meet the Requirements of Different Industries
Dust Detection:
Dust Particle, Laser dust sensor (0.3/0.5um,1.0um,2.5um,10um)
Detection Range:
0-999ug/m3; 0-9999999PC/L
Resolution：
1ug/m3; 1PC/L
IP Rating ：
IP66
Response Time：
≤20S（T90）
Detection Accuracy：
≤±5% (Depending on the specific sensor)
Linearity Error:
≤±1%
Zero Drift:
≤±1%（F.S/Year）
Recovery Time:
≤20S（T90）
Scalable Gas Sensor:
User can customize 1-6 gas sensors in any combination
Repeatability:
≤±1% F.S
Explosion Proof Sign：
CNEx16.0547
Temperature & Humidity(optional function):
temperature detection range:-40 ～ 120℃
humidity detection range:0-100%RH
Detection Pattern：
diffusion, online detection
Installation Method:
wall mounting type
Signal Output:
① 4-20mA signal (optional): standard 16bit 4-20mA output chip, transmission distance 1Km
② RS485 signal: standard MODBUS RTU protocol, transmission distance 2Km
③ 0-5V,0-10V output are optional
④ 1-2 relays output: Concentration alarm value adjustable contact rating：24VDC; 3A/220VAC 3A
Transmission Mode:
① Cable transmission :3-core, 4-core cable, long distance transmission (1-2 km)
② TCP/IP transmission: supporting TCP/IP protocol, using optical fiber, network cable, long-distance real-time transmission via intranet and extranet network (optional)
③ GPRS transmission: built-in GPRS module, real-time remote transmission of data, not limited by distance (optional)
④ Wireless transmission: supporting 433MHz, radio transmission mode, transmission distance 2-10Km, depending on power (optional)
Data Receiving Device :
PC, Gas Alarm Controller, PLC, DCS, Mobile Phone and Tablet Computer is optional
Alarm Mode:
audible and visual alarm, external alarm, remote controller alarm, computer data acquisition software alarm, mobile phone APP notification, SMS alarm are optional
Alarm Setting:
①standard configuration two-level alarm, three-level alarm is optional
②two alarm mode:high alarm & low alarm mode, interval control alarm mode
③interval control alarm for temperature sensor
④interval control alarm for humidity sensor
Material：
aluminum, explosion and corrosion proof
Working Environment:
Operating Temperature: -30℃ ～ 50℃）Higher temperature and humidity require custom sensors or optional preprocessing systems
Relative Humidity: ≤90%RH，Non-condensing
Pressure： 0 ～ 100Kpa
Power : 24VDC（12～30VDC）
Connection： 3/4″NPT,1/2″NPT, two connection modes are supported at the same time
Dimensions：
183*191*80mm(L×W×H） 1.5Kg（Net weight）
Standard Accessories:
User manual, certificate, calibration cover
