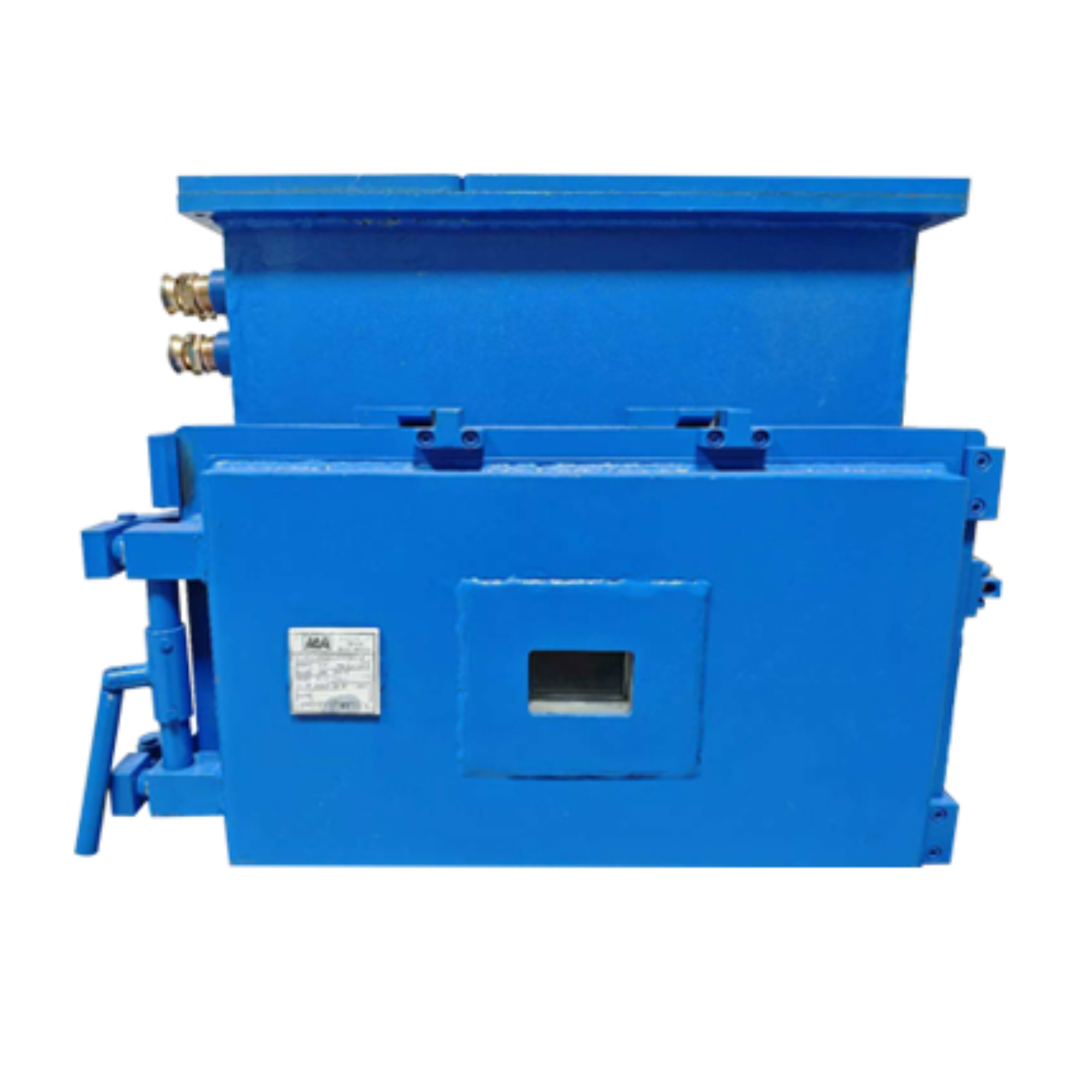

The system consists of a lithium-ion battery pack, a Battery Management System (BMS), a charging and inverter unit, an intrinsically safe power module, and a display and communication unit. It accepts a 127V underground power distribution input, which normally supplies power to equipment after voltage stabilization. Simultaneously, the power is converted into multiple intrinsically safe DC outputs at different voltages via an AC/DC intrinsically safe power supply module. In the event of a 127V power interruption, the system seamlessly switches to battery inverter output, ensuring continuous and stable power supply to downstream equipments and providing reliable power protection.
Technical Parameters
Power Supply Range: AC 95 V ~ 140 V
Output Power Supply:
1 × AC 127 V (non-intrinsically safe)
1 × DC 12 V, 1.5 A (intrinsically safe, Ex ia)
1 × DC 12 V, 2 A (intrinsically safe, Ex ib)
1 × DC 18 V, 1 A (intrinsically safe, Ex ib)
1 × DC 24 V, 0.5 A (intrinsically safe, Ex ib)
Battery Pack:
Type: 3.2 V 60 Ah LiFePO₄ (8 cells)
Rated Output Energy: 1536 W·h
Maximum Output Power: 2000 W
Continuous Backup Time: ≥6 h @ 200 W
Switching Time: <10 ms
Communication Interface: RS485 (supports ModBus protocol)
Protection Rating: IP54
Functional Features
① High Safety
Utilizes a lithium iron phosphate battery pack with high stability and long service life, ensuring safe and reliable operation in harsh mining environments.
② Multiple Outputs
Features power isolation design, delivering stable 127V AC power and multiple intrinsically safe DC outputs to meet the power requirements of various equipments.
③ Remote Monitoring
Equipped with an RS485 communication interface (ModBus protocol), enabling real-time remote monitoring of power status for easy management and maintenance.
④ Fast Switching
Switching time between grid power and battery power is less than 10ms, ensuring uninterrupted equipment operation.
⑤ Extended Backup Time
Provides battery backup for ≥6 hours (@200W load), meeting prolonged emergency power supply demands.
⑥ Wide Voltage Input
Supports a broad input range of AC 95V to 140V, adapting to fluctuations in underground power grids.
⑦ High Protection Rating
Rated IP54 with explosion-proof and intrinsically safe design, suitable for high-risk environments such as mines.
