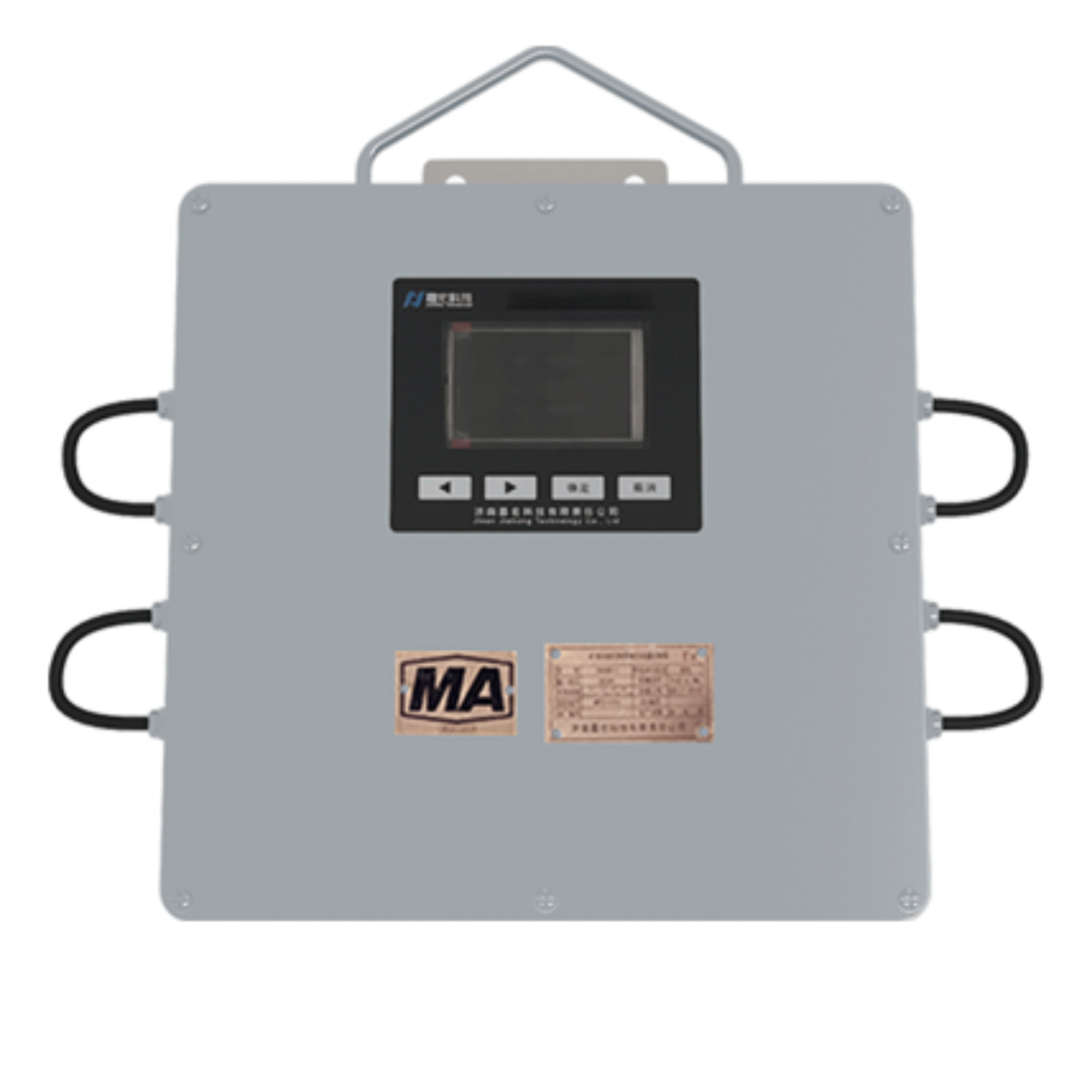

The Intrinsically Safe Controller is a versatile signal acquisition and control device designed for industrial and high-risk environments. Housed in a 304 stainless steel enclosure with an IP67 rating, it offers excellent resistance to dust, water, and corrosion, making it well-suited for harsh operating conditions.
The Intrinsically Safe Controller is a versatile signal acquisition and control device designed for industrial and high-risk environments. Housed in a 304 stainless steel enclosure with an IP67 rating, it offers excellent resistance to dust, water, and corrosion, making it well-suited for harsh operating conditions.
The controller supports a wide voltage input range (DC 9V ~ 26V), with a maximum operating current of ≤ 400mA. It is capable of processing 12 channels of intrinsically safe digital signals (high/low level) and 2 channels of analog signals (4 ~20mA), while also providing 12 channels of switch output. This enables flexible multi-channel signal acquisition and control.
The device is equipped with multiple communication interfaces, including two RS485 ports, one CAN port, one RS232 port, and one Ethernet port. It supports master-slave half-duplex communication and the TCP/IP protocol, with a maximum transmission rate of 115,200 bps, allowing for seamless integration into various monitoring systems.
The controller also features a display for parameters such as mode, opening degree, wind speed, and air volume. It is ideal for use in ventilation, wind power, and other industria scenarios that require multi-parameter monitoring and interlocked control.
Technical Parameters
①Operating Voltage Range: DC 9 V ~ 26 V, Operating Current: ≤400 mA
②Input Signals:
(a) 12-channel intrinsically safe high/low level signals, High level ≥3 V, Low level ≤0.5 V
(b) Analog signals: 2 channels (4~20 mA)
③Output Signals:
12-channel intrinsically safe high/low level signals, High level ≥3 V, Low level ≤0.5 V
④Communication Interfaces:
(a) RS485: 2 channels, Mode: Master-slave, half-duplex, Baud Rate: 115,200 bps
(b) CAN: 1 channel, Mode: Master-slave, half-duplex, Baud Rate: 10 kbps
(c) RS232: 1 channel, Mode: Master-slave, half-duplex, Baud Rate: 115,200 bps
(d) Ethernet: 1 channel, Protocol: TCP/IP, Rate: 10/100 Mbps (auto-adaptive)
⑤Basic Functions:
(a) 12-channel digital signal and 2-channel analog signal acquisition; 12-channel switch output control
(b) Supports CAN, RS485, and RS232 communication
(c) Displays operating mode, opening degree, wind speed, air volume, and other parameters
⑥Enclosure Material: 304 Stainless Steel
⑦Protection Rating: IP67
