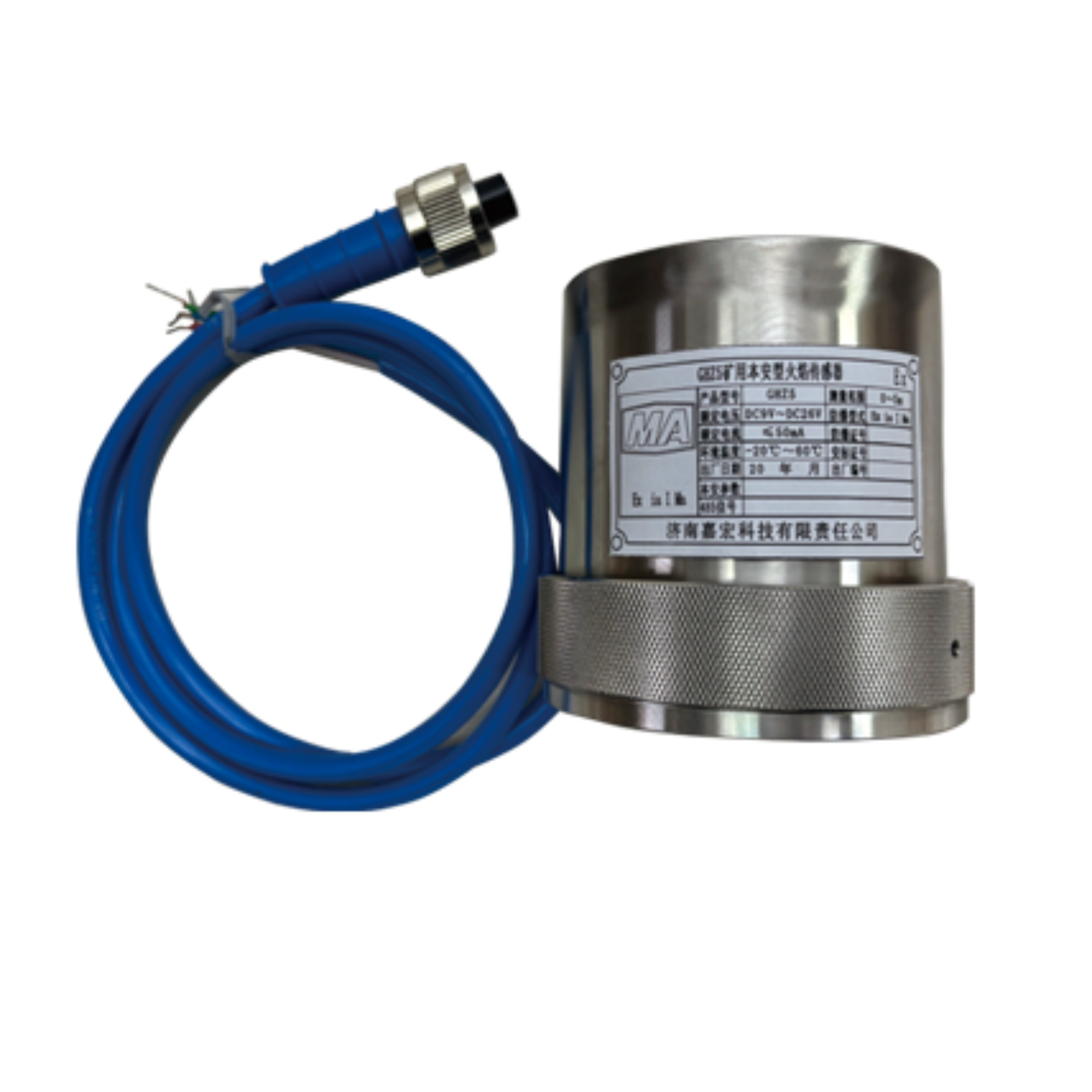

This flame sensor adopts a UV photoelectric tube as the detection unit, with a built-in intelligent processor and dedicated algorithms, enabling rapid identification and accurate judgment of flames. It is highly sensitive to ultraviolet radiation emitted by flames and effectively resists interference from visible light (such as daylight and artificial lighting) and infrared radiation, providing excellent false alarm immunity.
The sensor converts real-time monitoring data into both digital and switch signal outputs, making it suitable for flame monitoring across various industrial applications. The sensor features a wide detection angle, high sensitivity, fast response, dust resistance, durability, ease of installation and operation, and high reliability.
Technical Parameters
① Structural Characteristics
Window Size: Φ74 mm
Overall Dimensions: Φ92.5 mm × 95.5 mm
Weight: 1.5 kg
Material: 304 Stainless Steel
Protection Rating: IP68
② Power Supply Characteristics
Rated Voltage: DC 12 V
Operating Voltage Range: DC 9 V ~ 28 V
Maximum Operating Current: ≤50 mA
③ Interface Characteristics
RS485 Interface:
Quantity: 1 channel
Baud Rate: 1200 ~ 115,200 bps
Signal Peak- Voltage: ≤3.3 V
④ Switching Output:
Type: Passive Contact
Quantity: 1 channel
Output Mode: Normally Closed (activated during alarm)
⑤ Performance Indicators
Detection Target: Flame
Detection Principle: Ultraviolet Sensing
Response Time: <1 ms
Monitoring Range: 120° conical angle
Sensitivity: Capable of detecting a 1 cd flame at 5 m (flame size: diameter 1 cm, height 5 cm)
