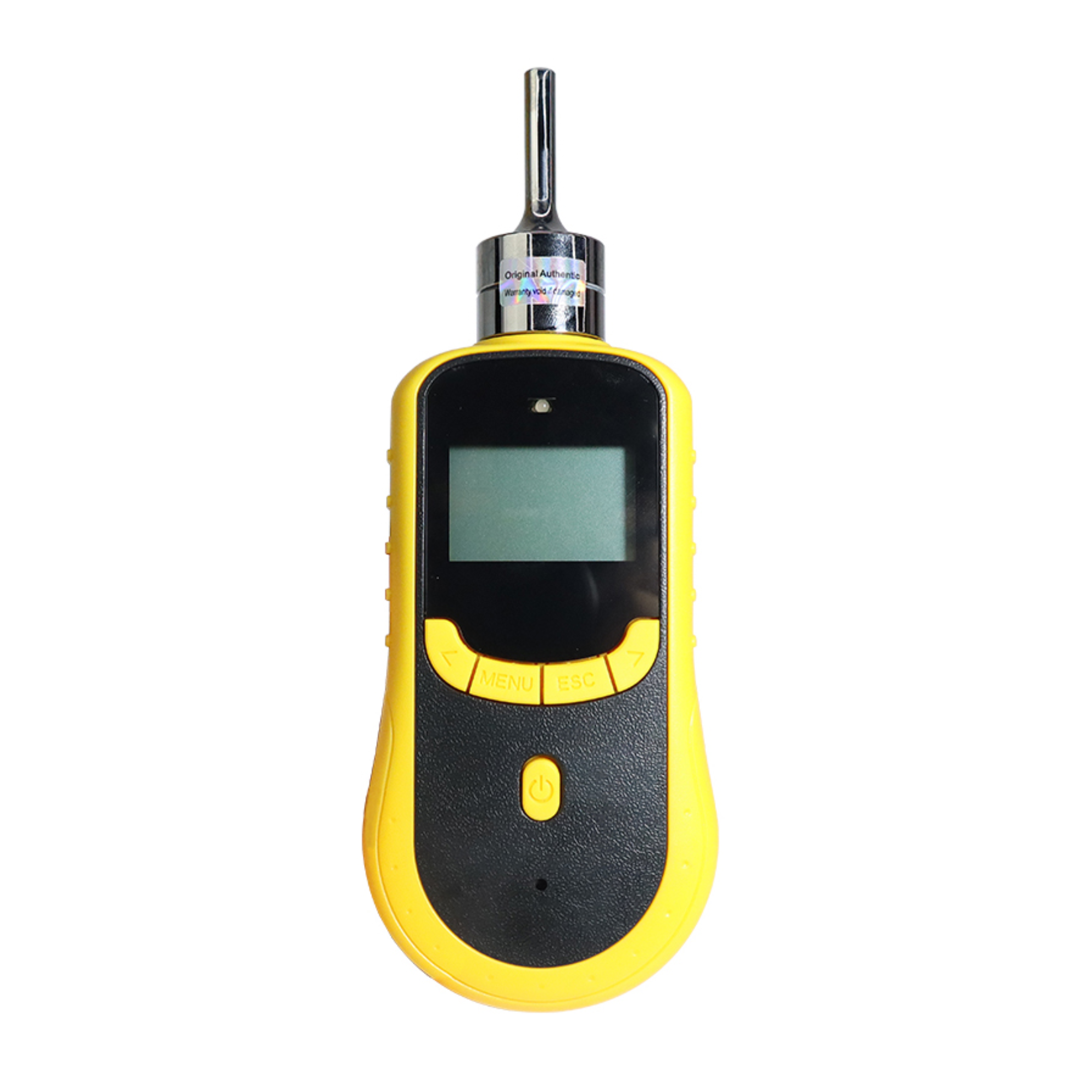

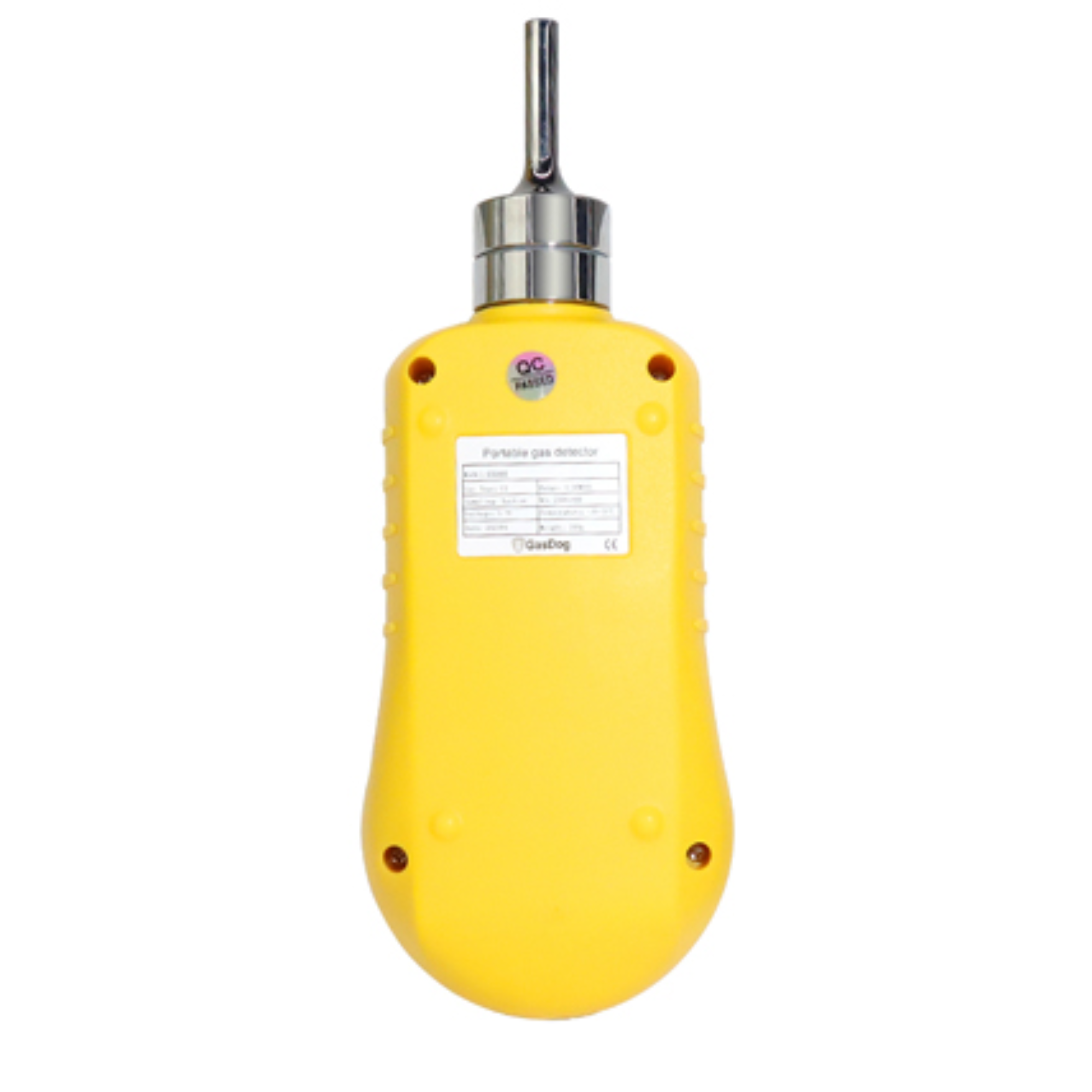

The provided yellow Hydrogen Sulfide gas detector is suitable for monitoring H2S concentration. GasDog portable single gas monitor features a gas sensor and light, sound & vibration alarms, available with a range of 0-50ppm, 0-100ppm, 0-200ppm, and 0-500ppm.
Gas Detector for H2S Monitoring
Our Hydrogen Sulfide H2S gas detector features light, sound and vibration alarms, pump-type, designed for detecting the leakage of Hydrogen Sulfide.
Basic Parameters:
Model: GD200-H2S
Sampling Method: Pump Type
Gas: Hydrogen Sulfide (H2S)
Range: 0 to 5ppm~20000ppm
Resolution: 0.001ppm, 0.01ppm, 0.1ppm, 1ppm
Accuracy: ≤±3% F.S.
Explosion-proof Grade: Ⅱ 2G Ex ia Ⅱ CT4 Ga
Certification: CE, ATEX
Warranty: 12 months
SPECIFICATIONS
Model
GD200-H2S
Sampling Method
Pump type, flow rate can be up to 750ml/min
Detection Principle
Electrochemistry
Gas
Hydrogen Sulfide (H2S)
Range (Optional)*
0 to 5/10ppm (for Atmosphere), 0 to 20/50/100/200ppm, 0 to 500/1000/2000ppm (for Smoke and Biogas)
Resolution
0.001ppm (0-5/10ppm), 0.01ppm (0-20/50ppm), 0.1ppm (0-100/200ppm), 1ppm (0-500/1000/2000ppm)
Accuracy
≤±3% F.S.
Response Time
≤10s
Repeatability
≤±1%
Recovery Time
≤10s
Linearity Error
≤±1%
Zero Shift
≤±1% (F.S./year)
Data Logging (Optional Function)
High speed data transmission by USB, available for data downloading and printing (The built-in IC card has about 2G memory, which can record 100,000 sets of data.)
Alarms
Sound, light and vibration
Display
LCD dot matrix display
Language
Chinese/English
Battery
3.7V rechargeable lithium battery, 3.7 Watt (Charger included: Input AC 100-240V 50/60Hz with optional USA, Europe or UK plug)
Operating Time
100h (Pump off)
Communication
Mini USB interface supports standard MODBUS communication protocol
Explosion-proof Grade
Ⅱ 2G Ex ia Ⅱ CT4 Ga
Case Material
ABS+PC
Protection Grade
IP66
Certification
CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014)
Operating Temperature
-20℃~50℃
Operating Humidity
0~95%RH (non-condensing)
Operating Pressure
0.8~1.2bar
Dimension
205*75*32mm
Weight
300g
Warranty
12 months
Extension Probe
About 480mm (Total Length), About 300mm (Probe Head)

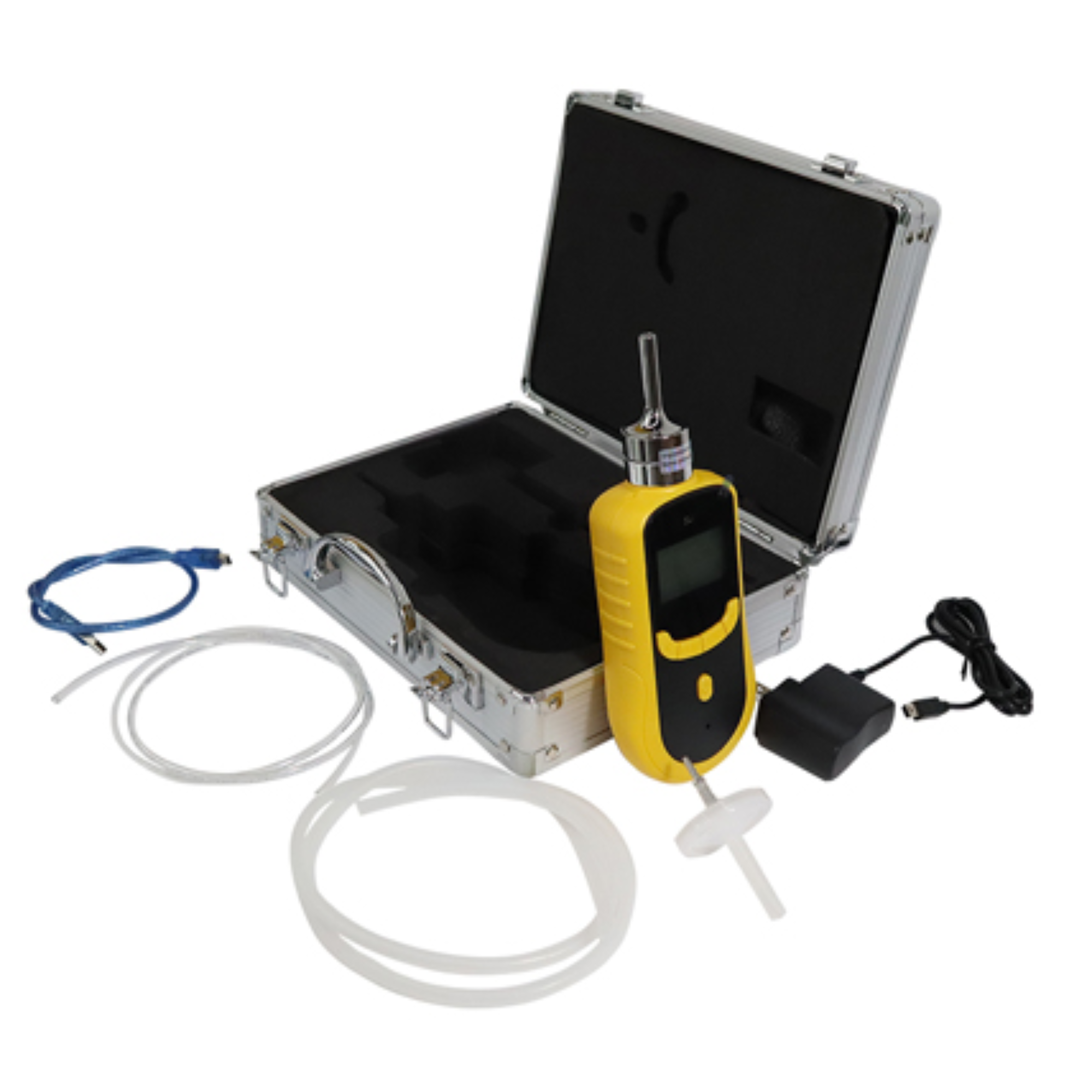

Accessories (Optional)
Calibration kit - gas pressure regulator (calibration gas cylinder NOT included)
Body Material: Stainless steel
Input Range of Pressure Gauge: 0-25MPa
Output Range of Pressure Gauge: 0-0.6Mpa
Gauge Class: 2.5
Input Pressure: ≤15MPa
Output Pressure: ≤0.45MPa
Rated Flow: 0.6 m3/h
Connection: Inlet: W21.8-14 teeth/inch (levorotation, dextrorotation) ; Outlet: Ф6 flexible tube
