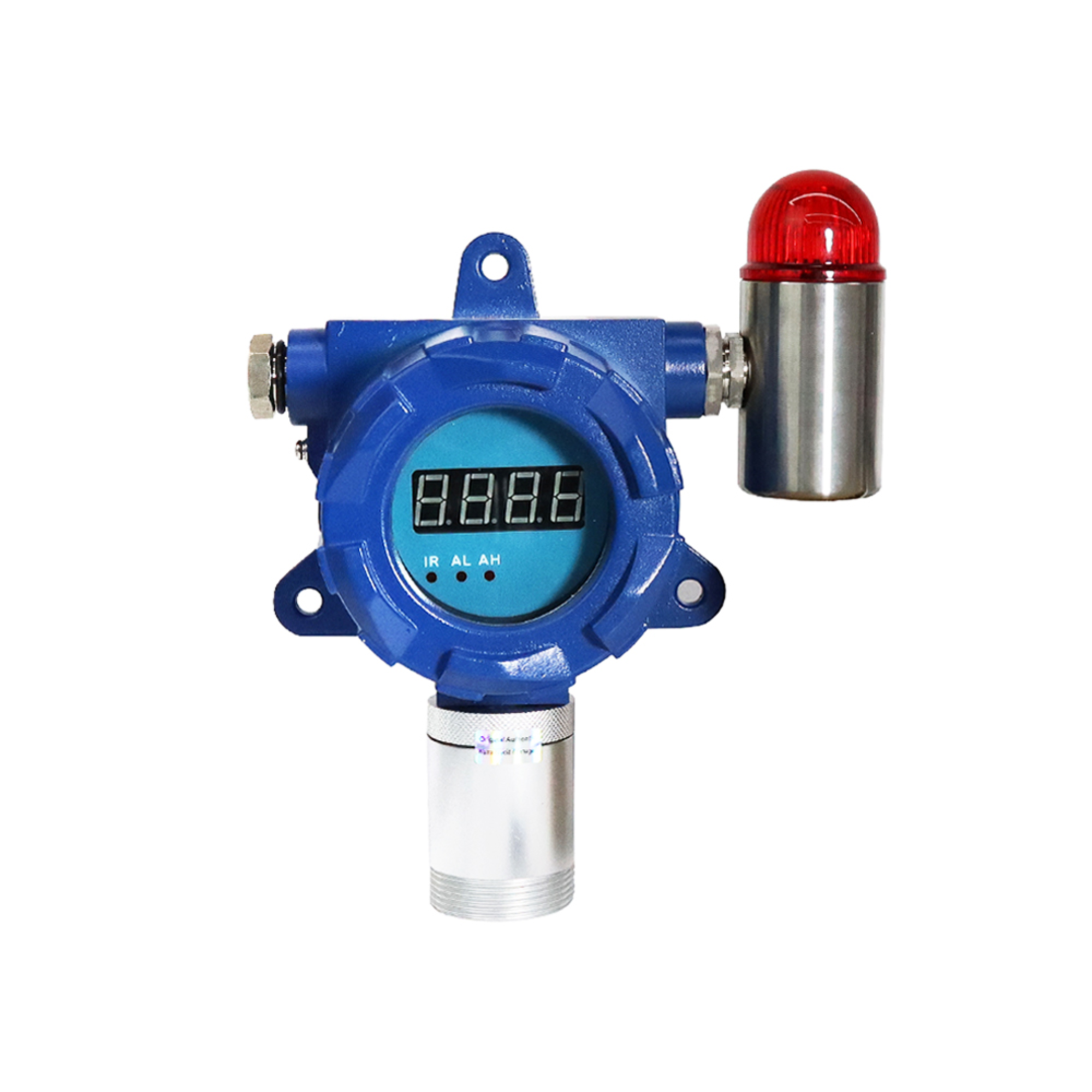

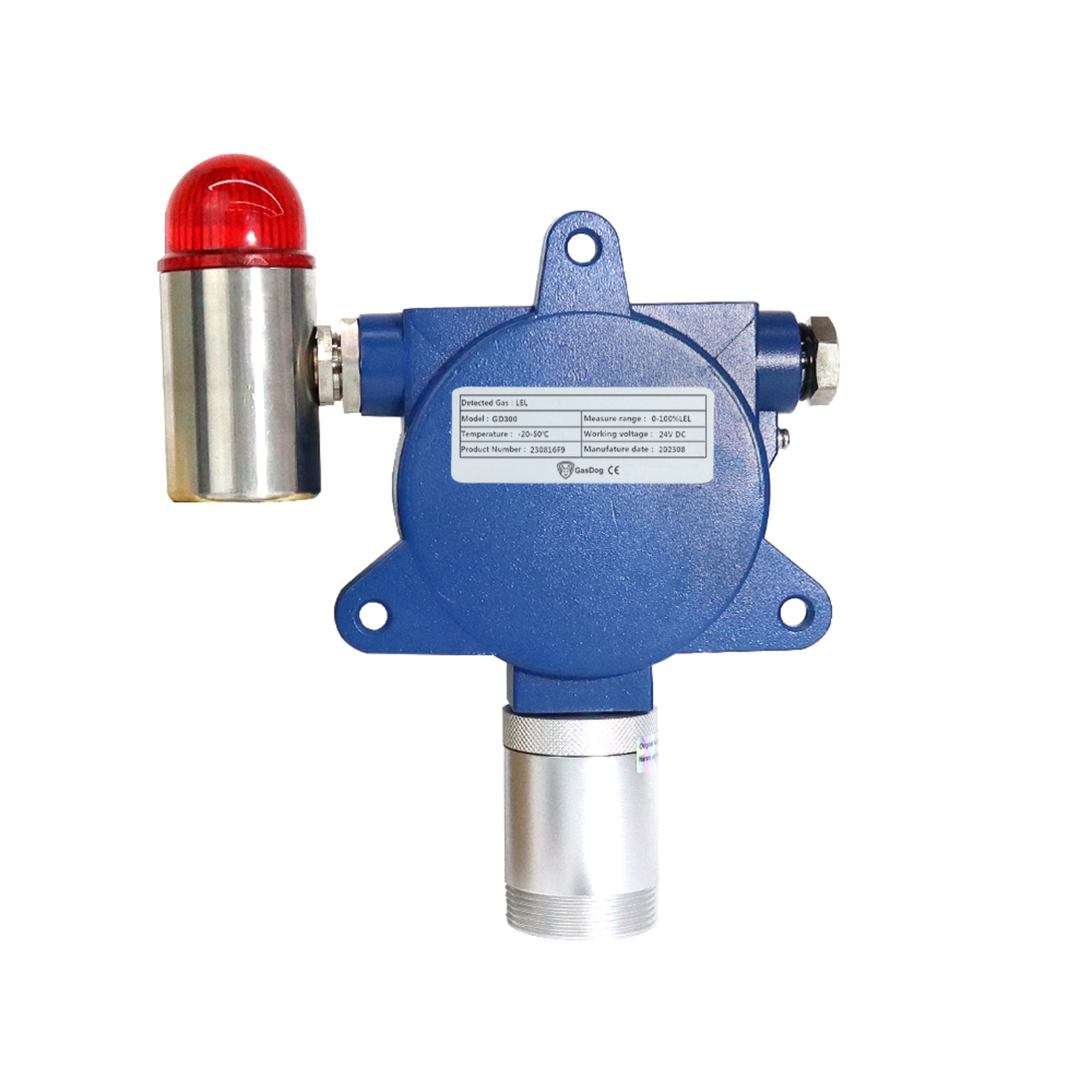

HCl gas detector with sound & light alarm is an online wall mounted gas monitor that can detect Hydrogen Chloride in different kinds of situations, high sensitive and economical price, available with a measuring range of 0 to 10/20/50/100/200ppm.
Gas Monitor for HCl Detecting
Fixed HCl Hydrogen Chloride gas detector comes with an advanced gas sensor and remote control for monitoring HCl gas concentration, displaying real-time data and providing sound & light alarm.
Basic Parameters:
Model: GD300-HCL
Detection Principle: Electrochemistry
Gas: Hydrogen Chloride (HCl)
Range: 0 to 10ppm ~ 0 to 200ppm
Resolution: 0.01ppm, 0.1ppm
Accuracy: ≤±3% F.S.
Explosion-proof Grade: Ⅱ 2G Ex ia Ⅱ CT4 Ga
Certification: CE, ATEX
Warranty: 12 months
SPECIFICATIONS
Model
GD300-HCL
Detection Principle
Electrochemistry
Gas
Hydrogen Chloride (HCl)
Range (Optional)
0 to 10ppm, 0 to 20ppm, 0 to 50ppm, 0 to 100ppm, 0 to 200ppm
Resolution
0.01ppm (0-10/20/50ppm), 0.1ppm (0-100/200ppm)
Calibration Kit
Gas pressure regulator (calibration gas cylinder NOT included)
Accuracy
≤±3% F.S.
Response Time
≤10s
Repeatability
≤±1%
Recovery Time
≤10s
Linearity Error
≤±1%
Zero Shift
≤±1% (F.S./year)
Signal Output (Optional)
4-20mA and RS485
Relay output: one group of relay output (1NO+1NC, 24V 100mA) for one alarm (default), or two groups of relay output (2NO+2NC, 24V 100mA) for high/low alarm (optional).
Alarms
Sound, light
Display
High light nixie tube display
Installation
Wall-mounted, piping type, flow-type (according to the detected environment)
Connection
Power connection type: G1/2 male thread explosion-proof flexible pipe
Pipe-mounted type: M45*P2.0
Operating Time
24h
Explosion-proof Grade
Ⅱ 2G Ex ia Ⅱ CT4 Ga
Protection Grade
IP65
Certification
CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014)
Working Voltage
12-36V DC
Case Material
Die-casting aluminum housing
Operating Temperature
-20℃~50℃
Operating Humidity
0~95%RH (non-condensing)
Dimension
206*179*90mm
Weight
≤1.6kg

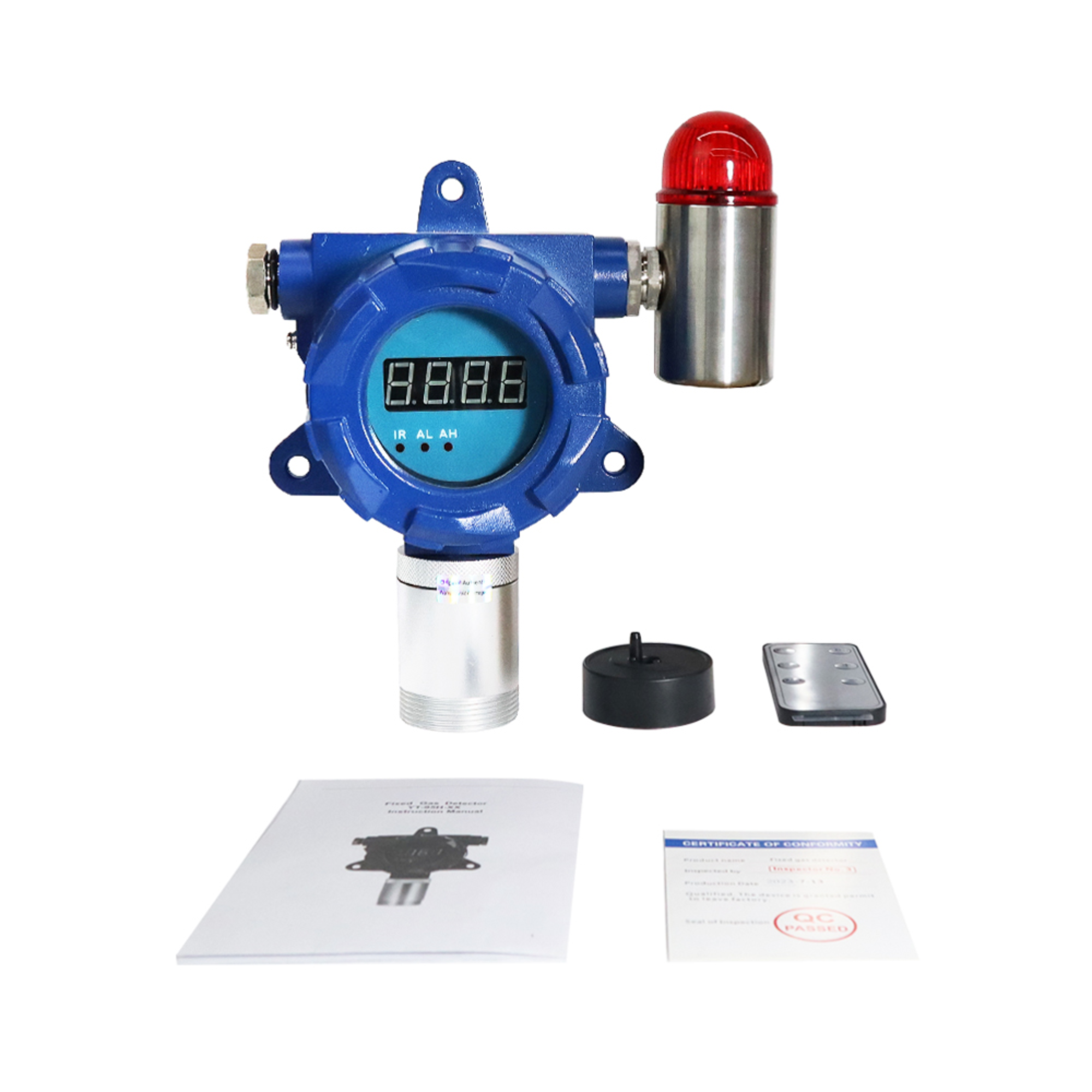

Accessories
Power adapter: Input 100-240VAC 50/60Hz, Output 24VDC 1A (Optional USA plug, Europe plug or UK plug)
