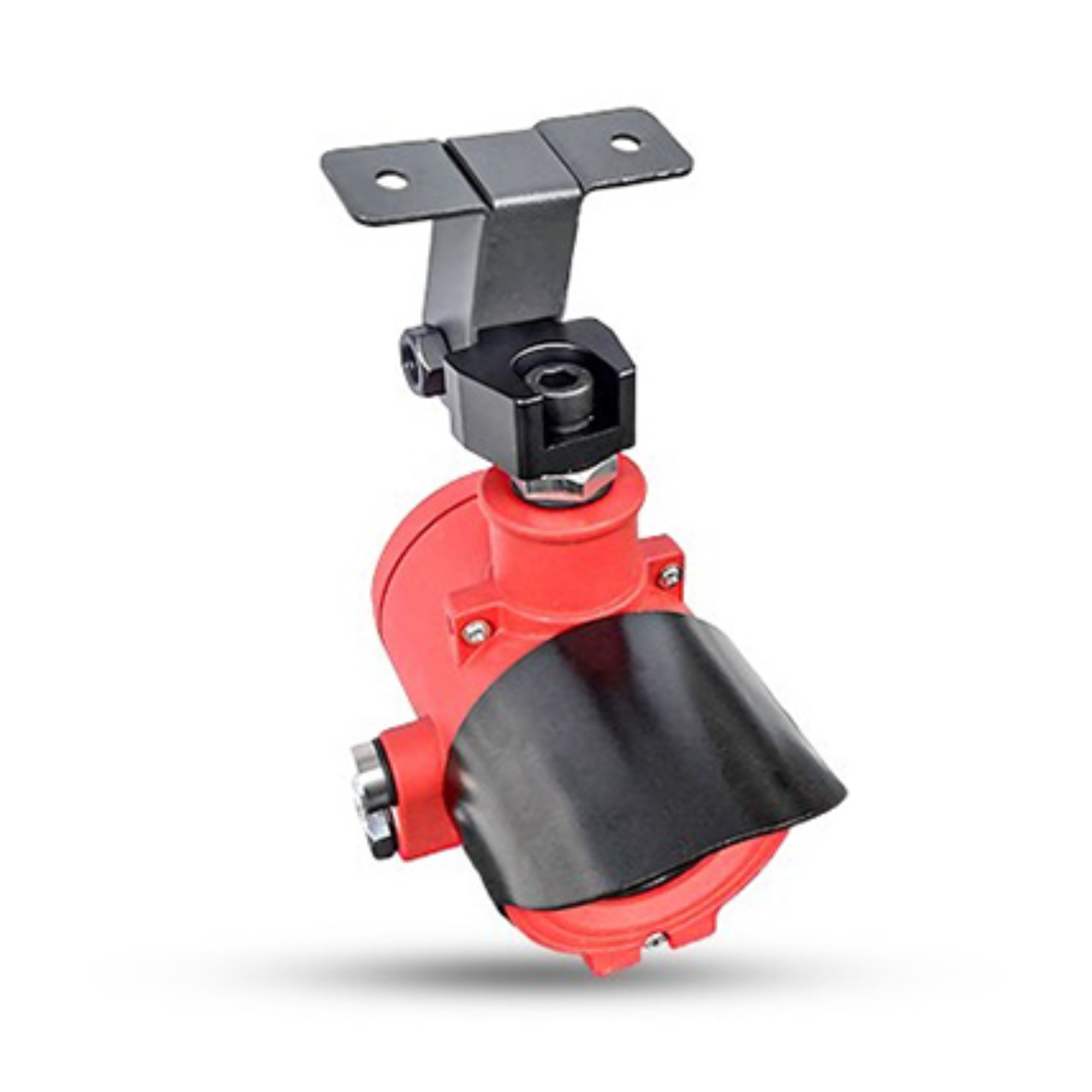

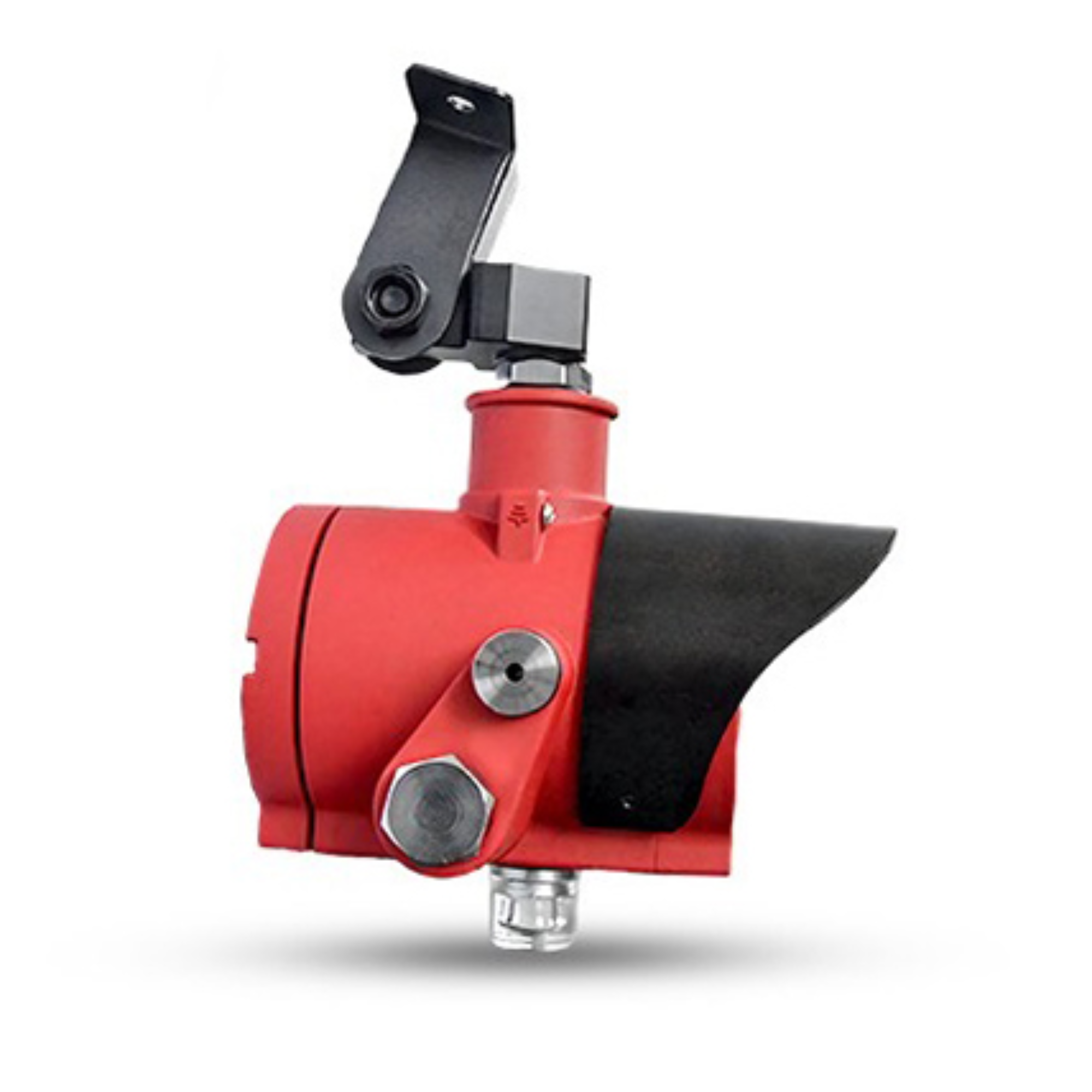

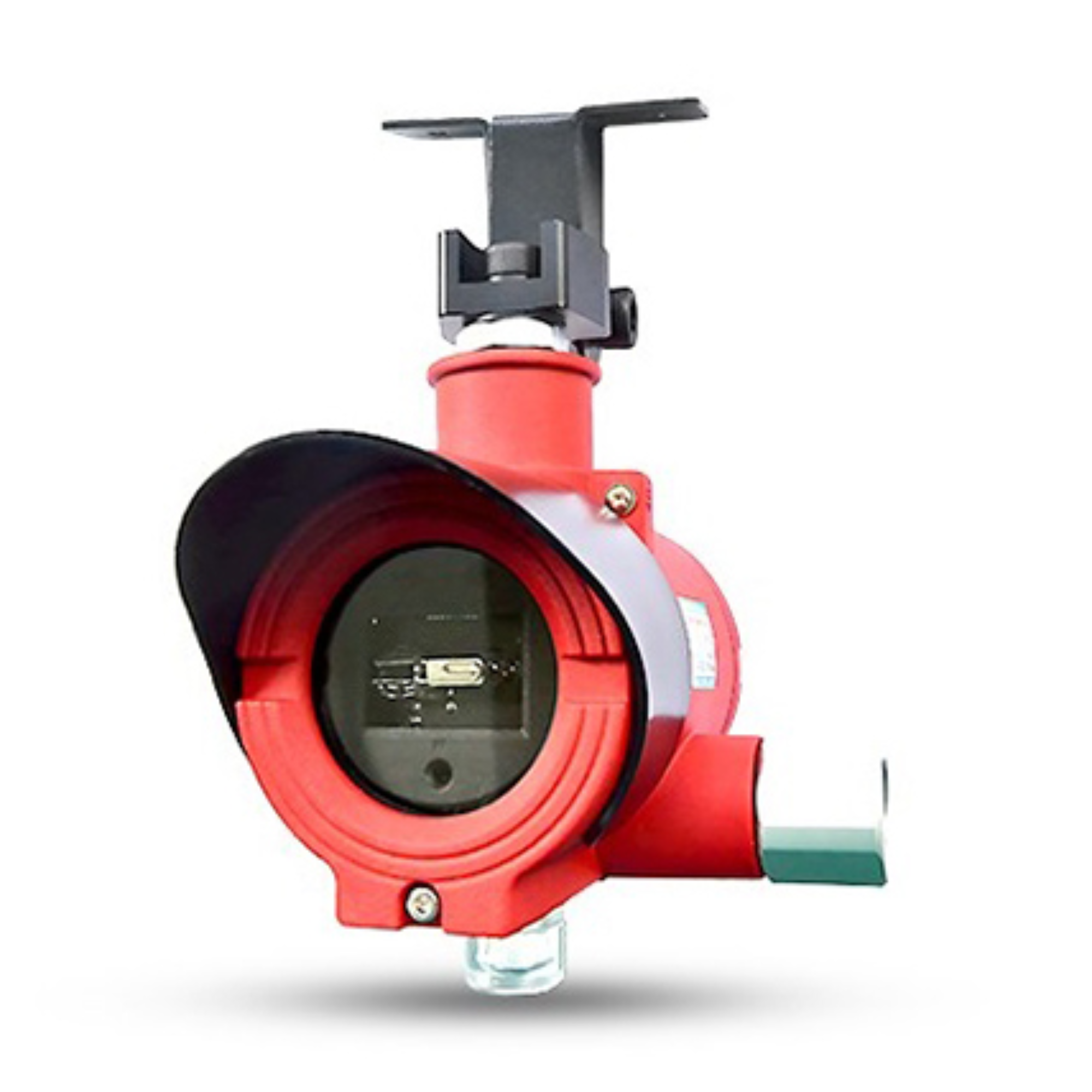

S600-ExUV point type ultraviolet flame detector adopts imported UV ultraviolet sensor with high sensitivity. The sensor can react to ultraviolet radiation when the fire and explosive are ignited. Combined with the comprehensive judgment of flame characteristics and logic when a fire occurs, it has a high immunity to false alarms generated by environmental light sources. The detector is suitable for smokeless liquid, gas, solid fire and other places where deflagration occurs.
The detector is particularly suitable for metals such as sodium, magnesium, etc .; explosives; hydrogen, hydride, ammonia, silane and other fires. Use in an environment where water vapor and dust are concentrated will reduce the sensitivity of the detector.
The detector is not suitable for use in environments with arc welding, ultraviolet light and outdoor.
Response spectral range
185-260nm
Response time
6s
Viewing angle range
≤110 °
Detection distance
Class I
Ambient temperature
-10 ~ 55 ℃
Environmental humidity
≤95% RH
Pressure range
86 ~ 106Kpa
Working voltage
DC24V
Working current
current≤25mA, alarm current≤35mA
Executive standard
GB127991-2006
Explosion-proof grade
Ex d ⅡC T6 Gb
Protection grade
IP66
Explosion-proof certificate number
CE20.1718
Signal output
Switching relay contact output, RS-485 (built-in DIP switch, can set the address of the detector)
Installation method
wall or ceiling
Cable outlet thread
20mmX1.5mm free conversion G1 / 2 optional
Dimensions
(190X160X110) mm
Shell material:
die-cast aluminum
Weight
1Kg
Advantages
dustproof, explosion-proof, corrosion-proof
