Detection principle：red/UV light Wavelength range：infrared 4.4μm ultraviolet 185 ~ 260nmUV Battery specification：3.6V/10000mAh Solar energy：2X1W Camera：30W pixels

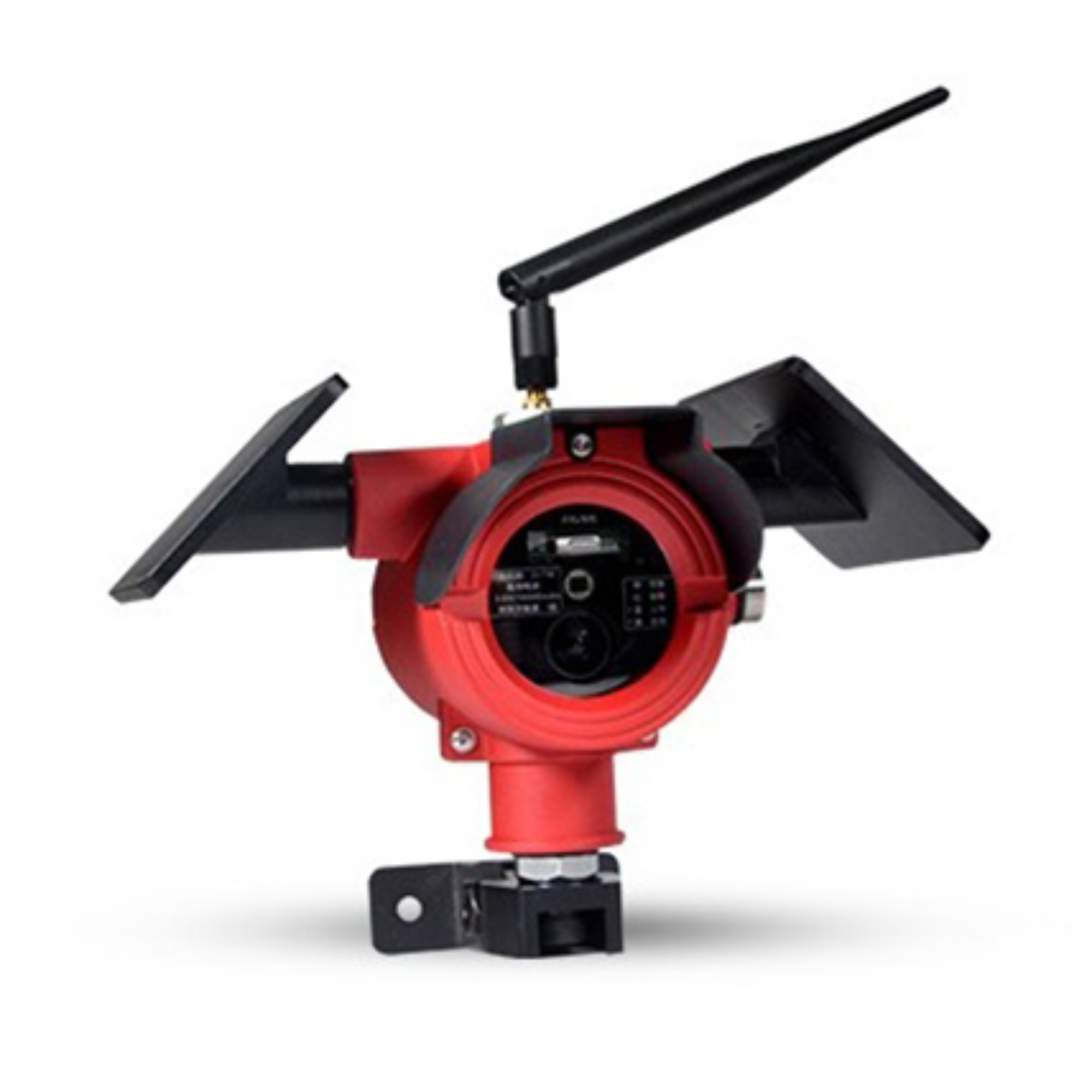

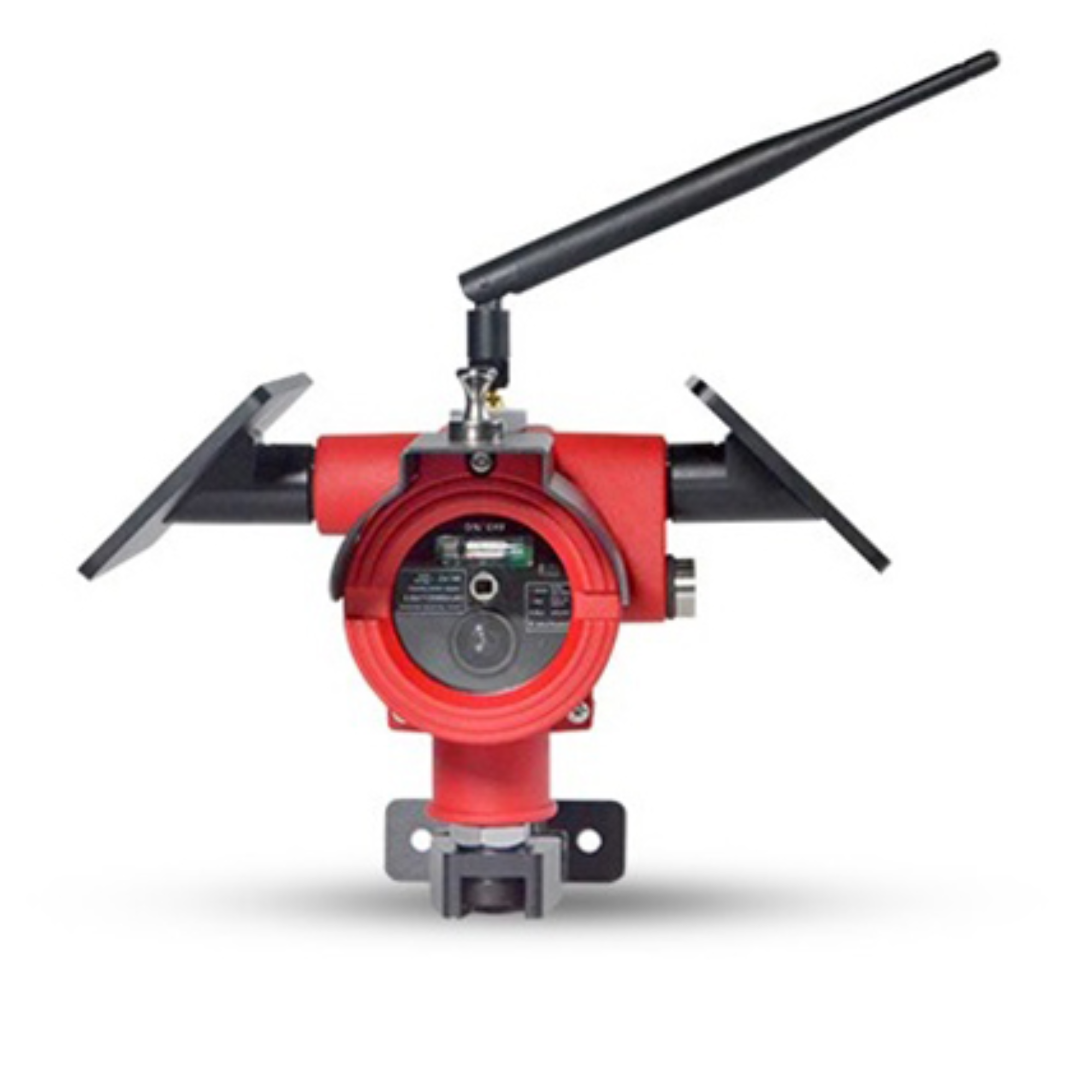

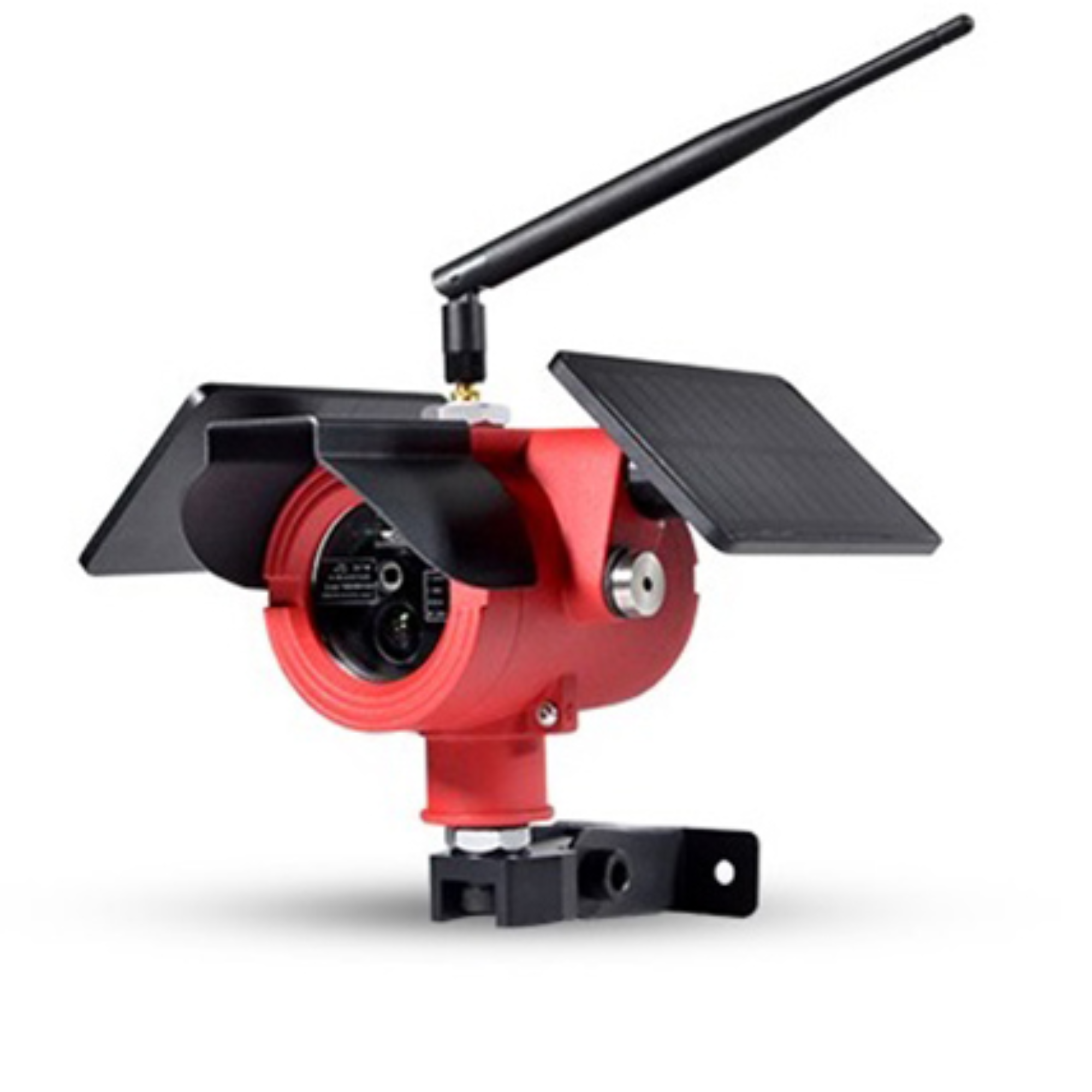

The flame detector uses IoT infrared sensors and a smart cloud IoT management platform to address the traditional problems of "difficult detection, late detection, and difficult networking" in fire monitoring. It enables early detection, early warning, and early response to forest fires, thereby avoiding greater losses. The detector also has an anti-tampering feature that triggers an alarm if the detector is moved abnormally.
Detection principle
red/UV light
Wavelength range
infrared 4.4μm ultraviolet 185 ~ 260nmUV
Battery specification
3.6V/10000mAh
Solar energy
2X1W
Camera
30W pixels
Spirit acuity
Level 1
Response time
< 30s
Preheating time
60s
Flame detection delay
3S
Ambient temperature
-10℃ ~ 55℃; The maximum surface temperature of the shell shall not exceed 80℃
Relative humidity
< 93%RH
Explosion-proof mode
flameproof type
Explosion-proof grade
Ex dⅡC T6Gb
Protection grade
IP67
Indicator
green indicates early warning, red indicates alarm, blue data upload, yellow fault
Weight
≤1200g
Dimensions
235mm x170mm x125mm (without antenna)
Pressure limit
86KPa ~ 106KPa
Use place
Use in dangerous places with explosive combustible gas IIA~IIC class and temperature group of T1~T6
