Pectral range of response：4.4μm Response time：6s Viewing angle range：≤110 ° Detection distance：Class I Ambient temperature：-10 ~ 55 ℃

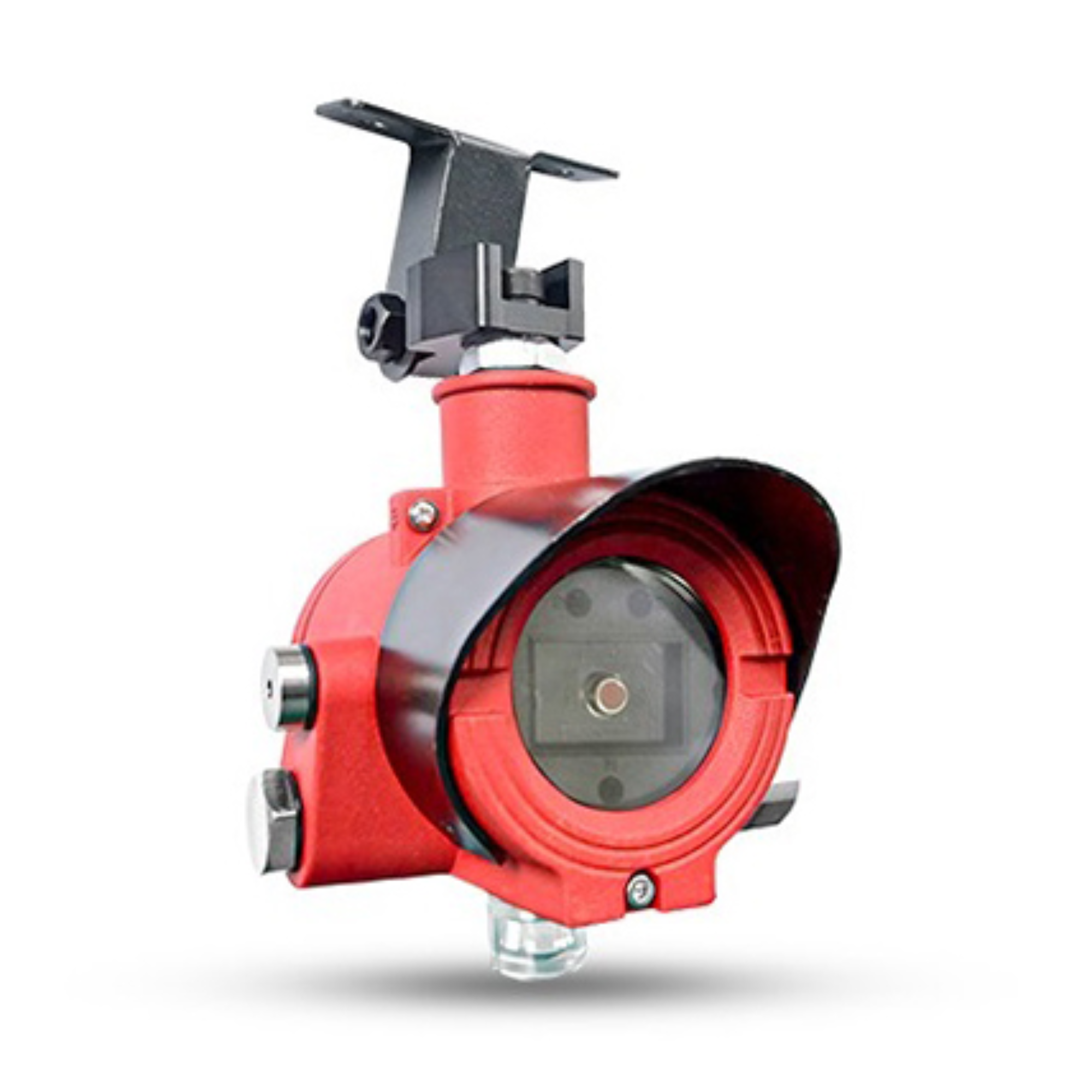

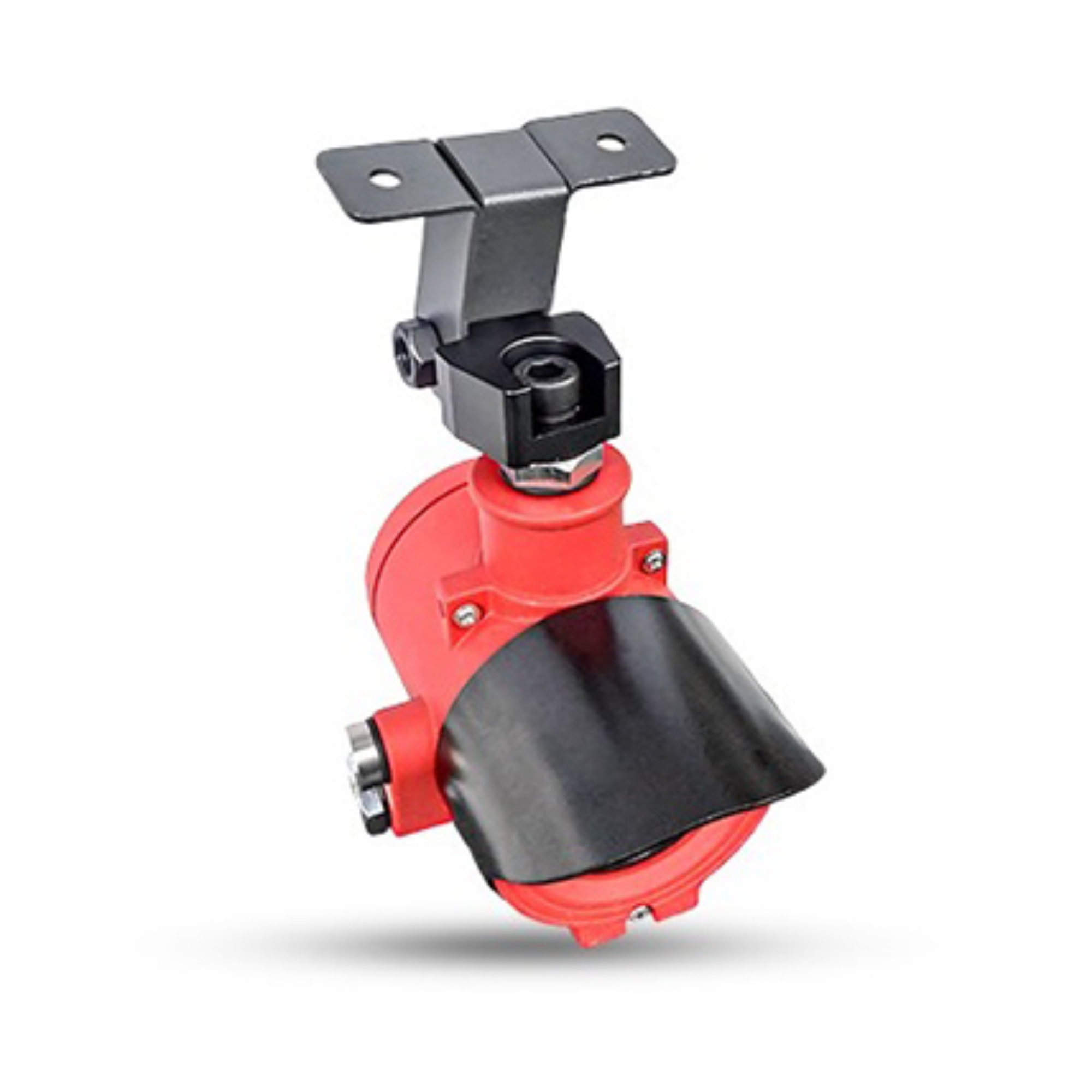

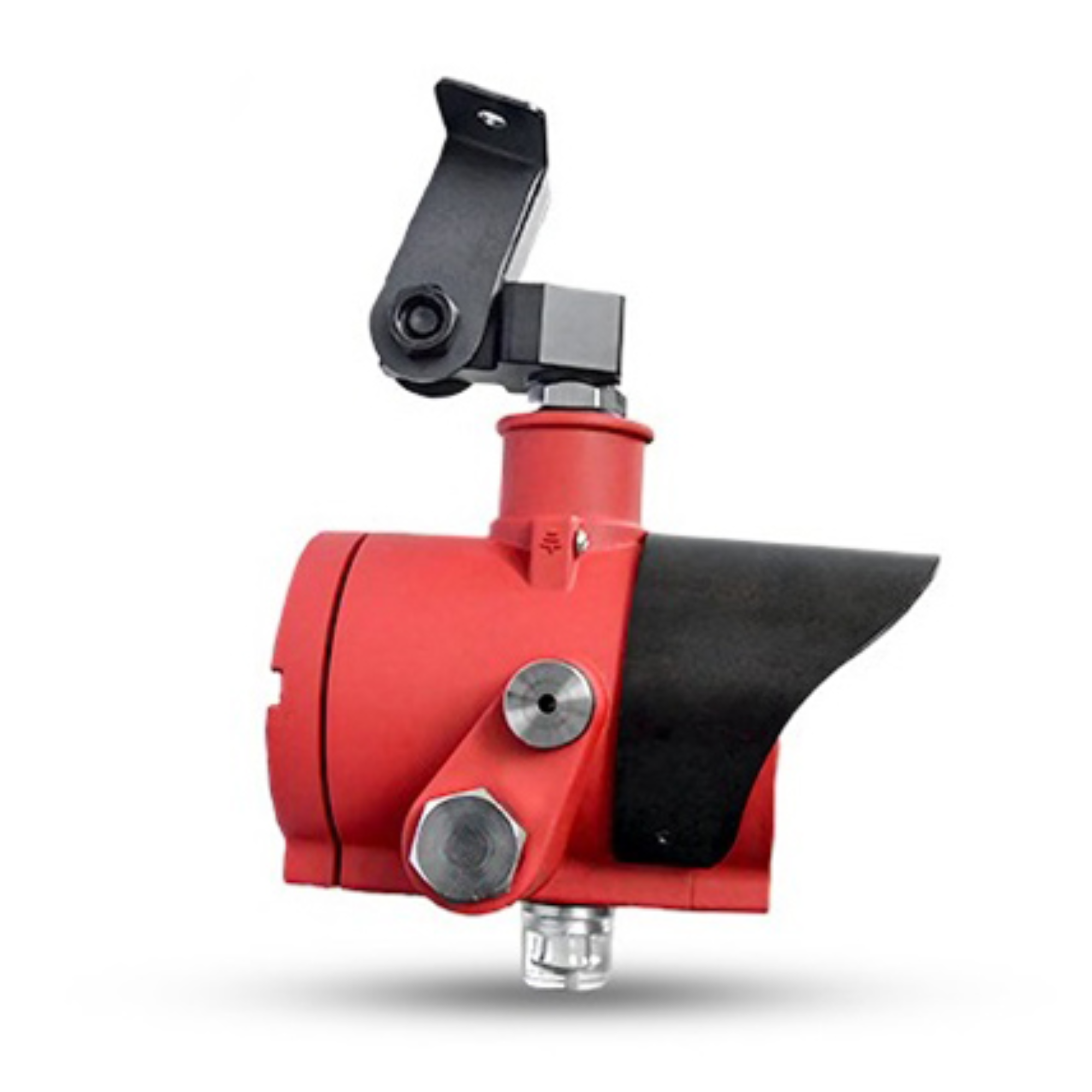

The S600-ExIR1 point infrared flame detector contains an infrared sensor and optical filter. The detector has the highest sensitivity to the CO2 emission spectrum (4.4 μm) generated by the combustion of hydrocarbons. Logic comprehensive judgment has high immunity to false alarms generated by environmental infrared light sources. Since the sunlight light source is relatively complex, and the detector uses only a single wavelength infrared sensor for flame detection, the product should be used in an indoor working environment. The detector is suitable for liquid and gas fires, open flames that produce smoke, and places where deflagration occurs.
Spectral range of response
4.4μm
Response time:
6s
Viewing angle range
≤110 °
Detection distance:
Class I
Ambient temperature
-10 ~ 55 ℃
Environmental humidity
≤95% RH
Pressure range
86 ~ 106Kpa
Working voltage
DC24V
Working current
monitoring current≤25mA, alarm current≤35mA
Executive standard:
GB15631-2008
Explosion-proof grade
Ex d ⅡC T6 Gb
Protection grade
IP66
Signal output
Switching relay contact output, RS-485 (built-in DIP switch, can set the address of the detector)
Installation method:
wall or ceiling
Cable outlet thread
20mmX1.5mm free conversion G1 / 2 optional
Dimensions:
(190X160X110) mm
Shell material:
die-cast aluminum
Weight
1Kg
Advantages
Dustproof, explosion-proof, corrosion-proof
